22 Basic operation

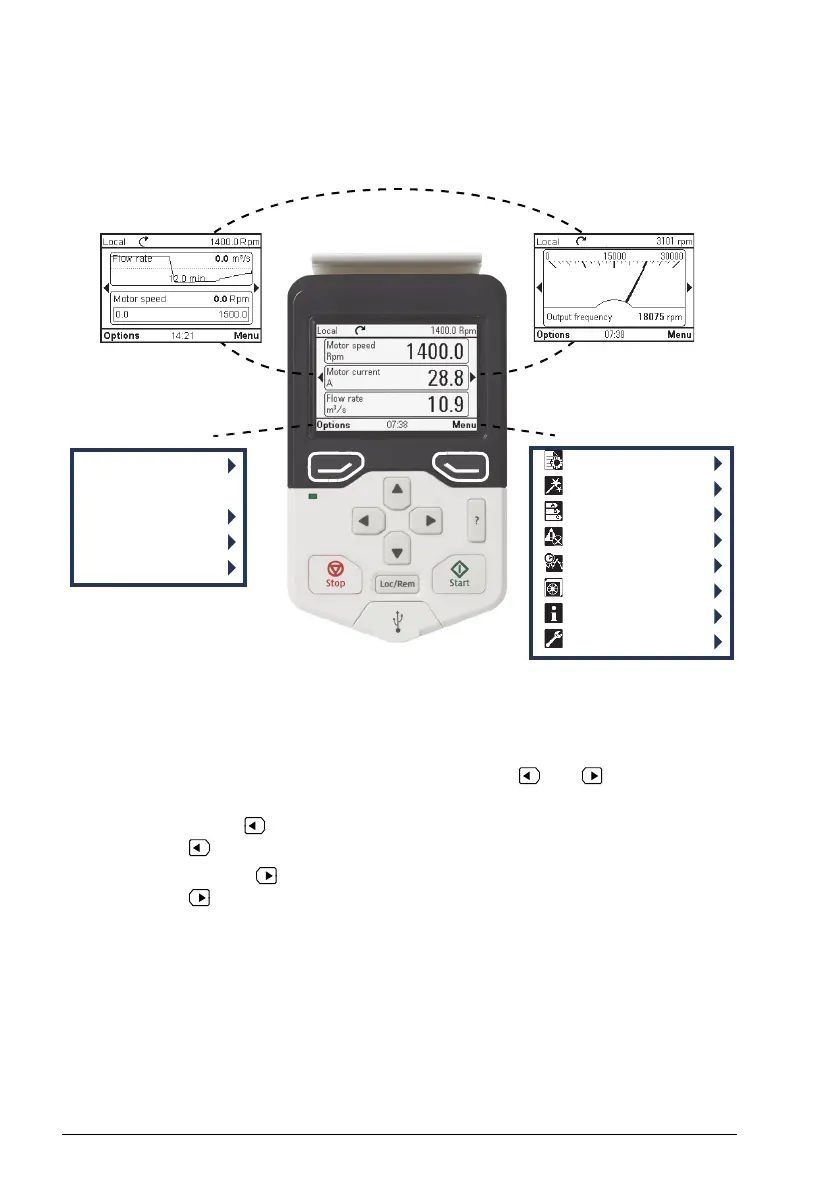

Control panel navigation
Use the arrow keys and softkeys for navigation. Follow the choices on the screen.
Navigation memory
The Assistant control panel has a navigation memory that allows you to backtrack
your steps through the user interface with the arrow keys and . The path you
have last accessed remains in the memory for 10 minutes.
• The left arrow key ( ) moves you backwards in the menu structure.
If you press repeatedly, you return back to the Home view.
• The right arrow key ( ) moves you forward in the menu structure.
If you press repeatedly, you move forward along the path in the menu
structure you had previously accessed.
Home view
The main view of the control panel is called the Home view. In the Home view, you
can monitor the status of the drive, such as its speed, torque or power. The Home
view has one or more pages, each of which can display up to three signals.
The number of pages and the signals shown on each page are customizable, and the
Home view configuration is saved to the drive whenever you change it. The maximum
Parameters
Assistants
Energy efficiency
Event log
History graphs
Backups
System info
Settings
Home view
Reference
Direction change
Select drive
Edit Home view
Menu
Options
Fault status
