09 CDP CONTROL PANEL
3BHS799208 E01 REV E ACS5000 WATER-COOLED USER MANUAL 144/186

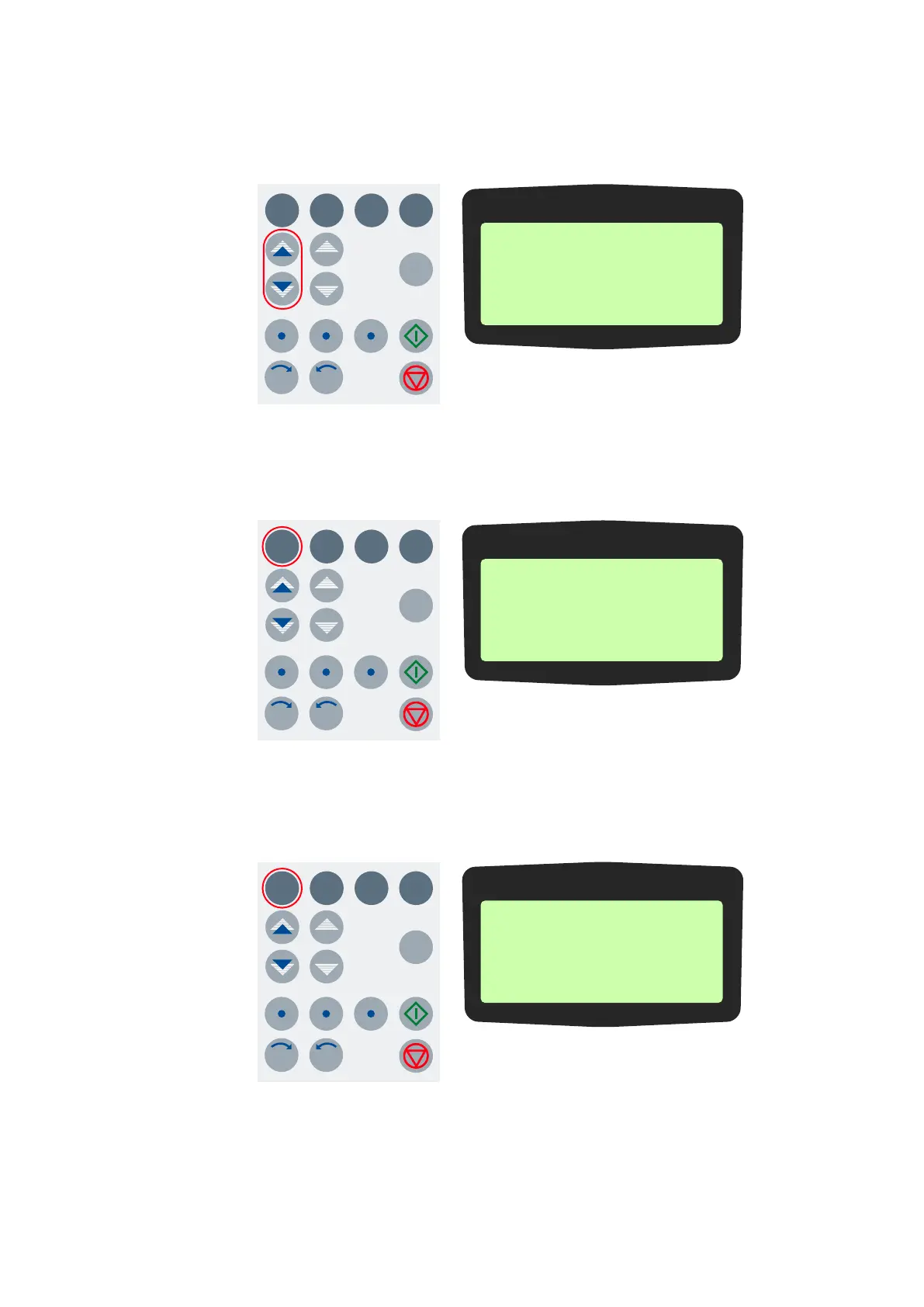

9.2.2.3 Toggling between actual signals display and fault memory
To toggle between actual signals display and fault history display, press a
fast navigation key.
9.2.2.4 Displaying three actual signals
1. To display the full name of three actual signals, press and hold the
ACT key.
2. To return to the actual signals display, release the ACT key.
9.2.2.5 Selecting actual signals
1. To select the actual signals display, press the ACT key.
1 L -> 600.0 rpm
1 LAST FAULT
+Overspeed
070730 12:30:02.3256
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 600.0 rpm
StateINU
MOTOR SPEED
POWER
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
1 L -> 600.0 rpm
StateINU ReadyRun
MOTOR SP 600.00 rpm
POWER 75.0 kW
ACT PAR FUNC DRIVE
LOC
I0
RESET REF
ENTER
REM
