50

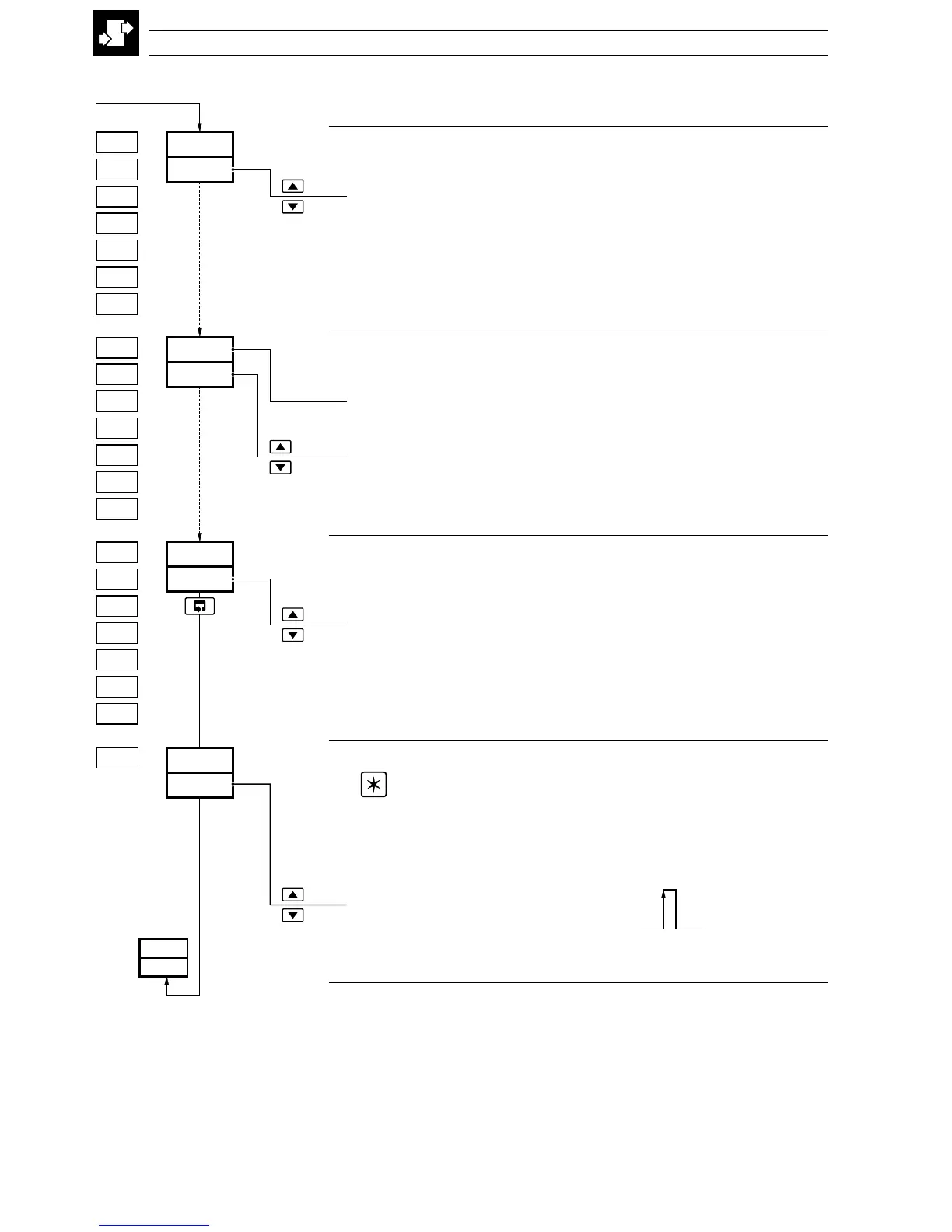

Alarm Type 2 (Alarms 2 to 8 )
[see Alarm 1 Type]
Alarm 2 to Alarm 8 Trip
Alarm Number and Type
[see Alarm 1 Trip]
Trip Value
[In engineering units]
Alarm 2 to Alarm 8 Hysteresis
Set the hysteresis value (in engineering units) – see Alarm 1 Hysteresis.
[In engineering units]
Global Alarm Acknowledge Source
Note. This frame is applicable only to issue 4 and later software.
All active and unacknowledged alarms can be acknowledged by a single
digital input.
Set the source required to acknowledge all alarms
See Rear Fold-out/ Table C –
Digital Sources.
Return to top of page.
… 4.4 Level 8 – Alarms
…4 CONFIGURATION MODE
8.04...8.25
0
trP.x
8.05
8.06
8.07
NONE
tYPx
8.04
8.10
8.13
8.16
8.19
8.22
8.08
8.11
8.14
8.17
8.20
8.23
0
HYS.x
8.09
8.12
8.15
8.18
8.21
8.24
LEV8
ALMS
8.25
NONE
G.ACK
Acknowledge •1
•1 A digital input becomes active when a volt-free contact is closed or a low TTL signal is applied.
