ControlMaster CM30, CM50 and CMF310
Universal process controllers,
1
/4,
1
/2 DIN and fieldmount 10 Specification
IM/CM/ED–EN Rev. X 103
Safety
Approvals and certifications
EN61010-1
cULus
General safety

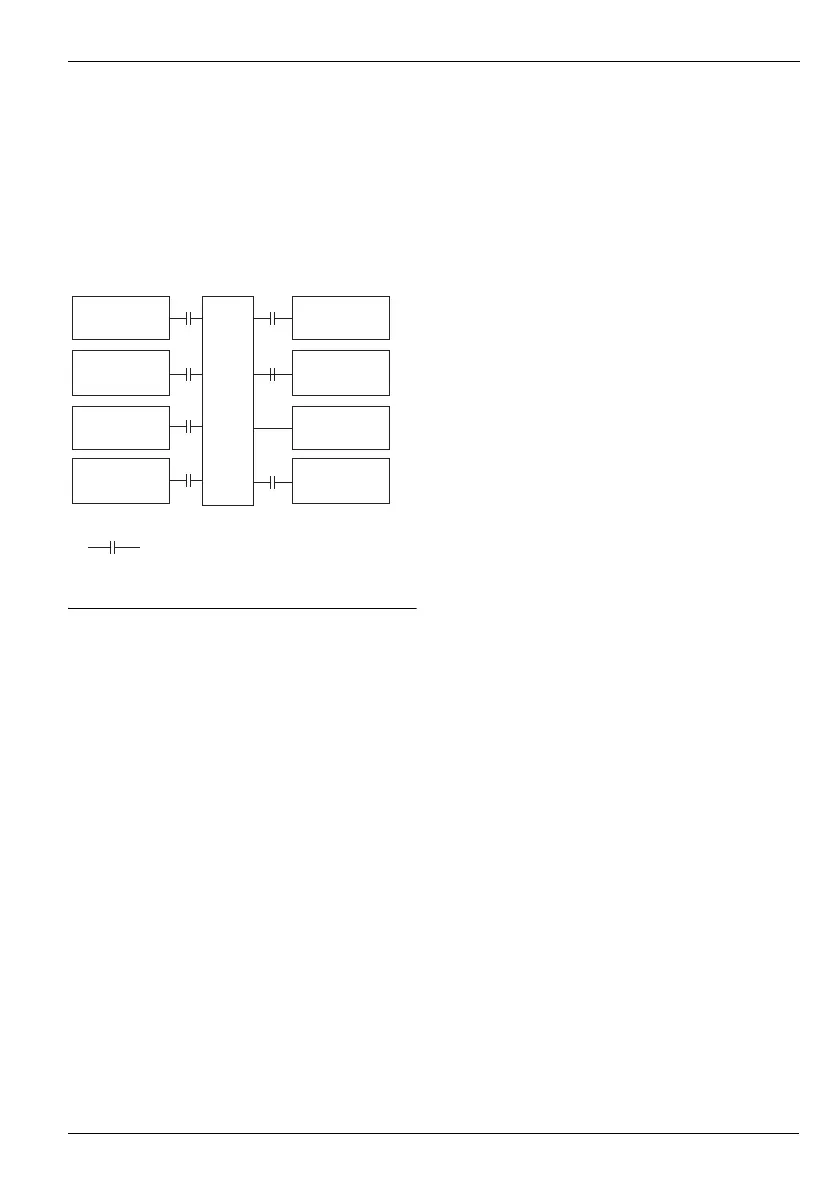

Isolation (to inputs)
Key
= Isolation
*Isolated on CMF310 only
Electrical
Supply ranges
100 to 240 V AC ±10 %
(90 V min. to 265 V max.) 50 / 60 Hz
CM30 / CM50: 10 to 36 V DC (optional)
Power consumption
Power interruption protection
No effect for interrupts of up to 60 ms
Physical
Size
Weight
Panel cutout
Case material
Glass-filled polycarbonate
DS/CM30–EN Rev. P
DS/CM50–EN Rev. N
DS/CMF310-EN Rev. D
CM30 / CM50: Pollution Degree 2, Insulation Class 2
CMF310: Pollution Degree 2, Insulation Class 1
CM30 /CM50 10 W max.
CMF310 25 W max.
*
*
Analog I/Ps
Tx PSU
Analog O/P 1
Analog O/P 2
CPU
Comms
Relays
Digital I/O
Mains Supply
CM30 97 x 97 x 141 mm (3.8 x 3.8 x 5.5 in.)
CM50 144 x 76 x 146 mm (5.6 x 3.0 x 5.7 in.)
CMF310 214 x 194 x 98 mm (8.42 x 7.64 x 3.85 in.)
CM30 0.5 kg (1.1 lb) approx. (unpacked)
CM50 0.57 kg (1.27 lb) approx. (unpacked)
CMF310 1.5 kg (3.3 lb) approx. (unpacked)
CM30 92 x 92 mm (3.6 x 3.6 in.),
121 mm (4.8 in.) behind panel
CM50 138 x 68 mm (5.4 x 2.7 in.),
123 mm (4.9 in.) behind panel
CMF310 186 x 186 mm (7.32 x 7.32 in.)
92 mm (3.6 in.) behind panel
