Spare parts list
D184B140U02 FSM4000 109
10.2 Spare parts for transmitter S4
10.2.1 Field housing unit
x
x
G00582
4
5
7
6
8
11,12
11,12
114
9
2
10
11,12
5
13

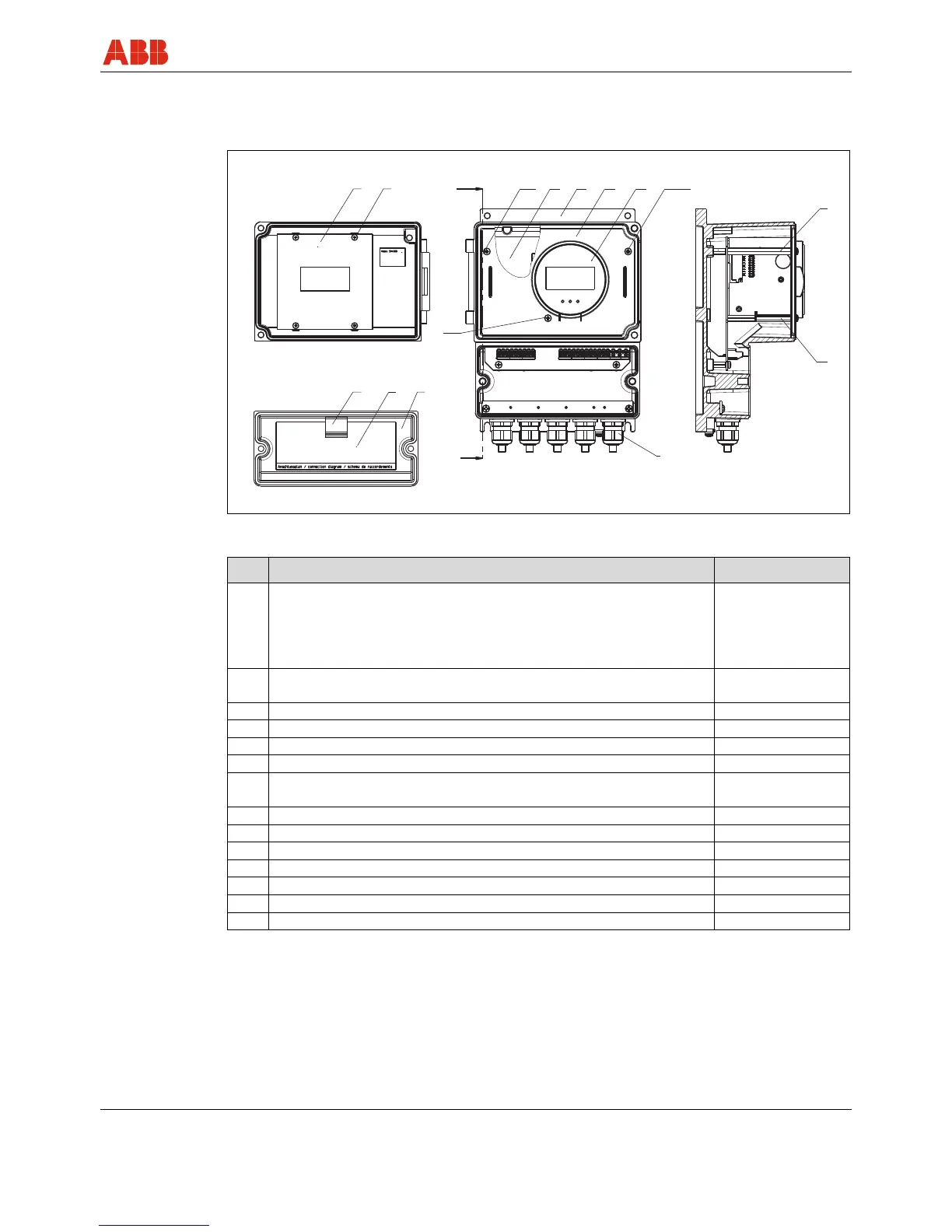

Fig. 55
No. Parameter Order number
1
Transmitter (100 ... 230 V AC) without HART
Transmitter (100 ... 230 V AC) with HART
Transmitter (100 ... 230 V AC) with PROFIBUS PA / FF
1)
Transmitter (24 V AC/DC) with HART
Transmitter (24 V AC/DC) with PROFIBUS PA / FF
1)
D674A859U04
D674A859U05
D674A859U06
D674A860U03
D674A860U04
2 Connection board, standard
Connection board, PA/FF
D685A1020U03
D685A1020U02
3 Cover lar
g
e, complete D641A030U01
4 PVC cover D626A005U01
5 Spacer bolts M4 x 75,
g
alvanized steel D124E009U20
6 Cover small D641A029U01
7 Connection diagram, standard / HART
Connection dia
g
ram, PROFIBUS P
A
/ FF
D338D311U01
D338D311U02
8 Flat cable holder D174D002U03
9 Field housin
g
unit, empt
y
D641A033U01
10 Cable
g
land M 20 x 1.5 D150A008U15
11 Pan head Phillips screw M4 x 10,
g
alvanized steel D004G108AU01
12 Sprin
g
washer A 4.0 DIN 137, SS D085D020AU20
13 Spacer bolts M4 x 41 I/A,
g
alvanized steel D403B104U01
14 Protective cover D355H305U01
1)
When ordering spare parts, please provide the communication version to help us select the
proper software.
