ABB FSM4000-SE41F - Terminal Box, Aluminum, DN 3

Spare parts list
D184B140U02 FSM4000 111
10.3.2 Terminal box, aluminum, DN 3 ... DN 1000
G00583
9
1
2
2.1-2.3
1.1
3
4
4.1
5
5.1
7
7.1
7.2
8
6
6.1-6.3

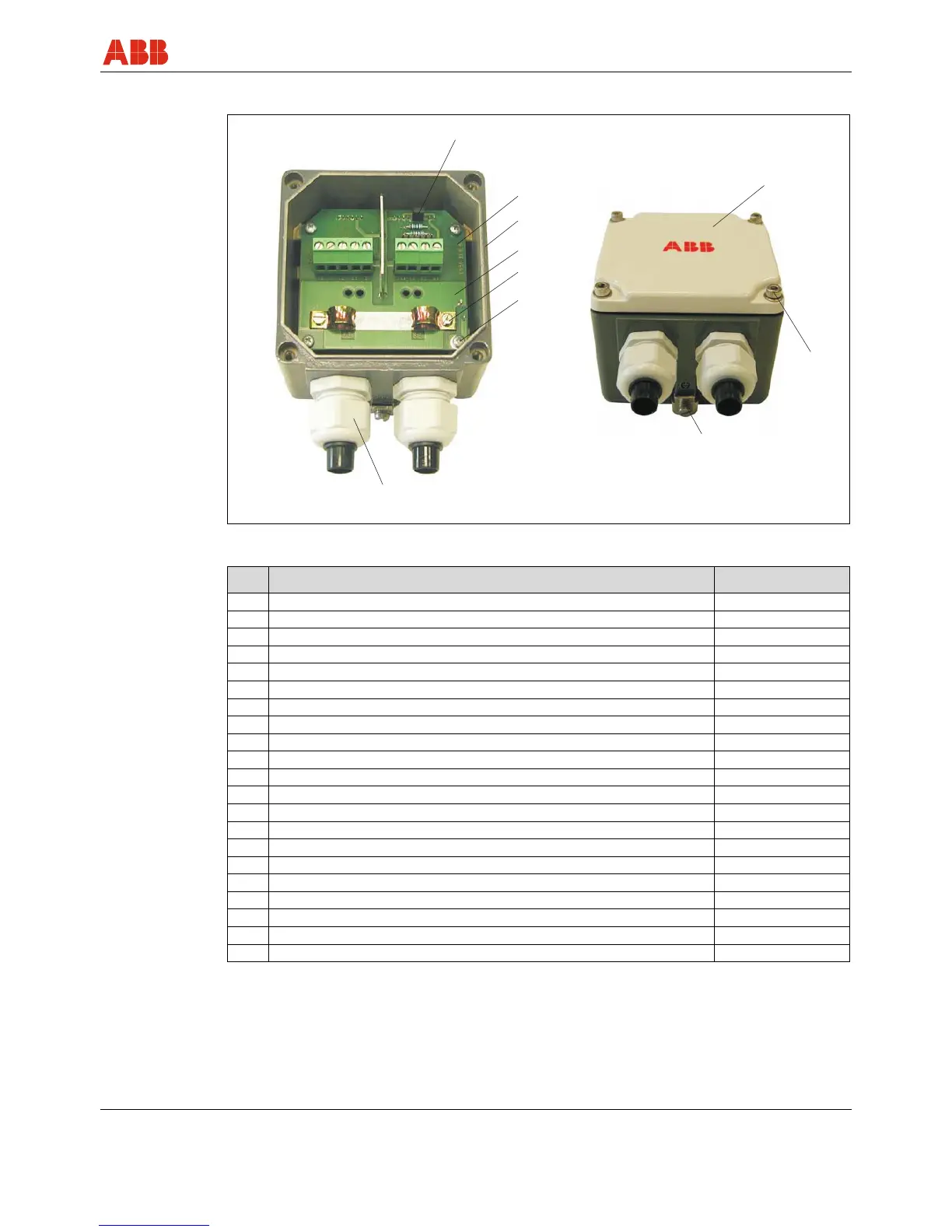

Fig. 57
No. Name of part Order number
1 Connection board, standard > DN 8 D685A1025U01
1.1 Connection board, preamplifier D685A1028U01
2 Lower section with cable
g
land M 20 x 1.5 ≤ DN 100 D612A153U01
2.1 Lower section with cable
g
land M 20 x 1.5 > DN 100 D612A153U05
2.2 Lower section with NPT adapter ≤ DN 100 D612A153U03
2.3 Lower section with NPT adapter > DN 100 D612A153U07
3 Cheese head screw M3 x 8, DIN 84 D002F107AU20
3.1 Clamp strap D108A003U08
4 Sheet metal screw 2.9x6.5 DIN 7981 D055E106CZ01
4.1 Serrated lock washer A3.2, DIN 6798 D085G017AU32
5 Cable
g
land M 20 x 1.5, standard D150A008U15
5.1 Cable
g
land PG 13.5, option D150A008U02
6 Cover compl. D612A152U01
6.1 Cover
g
aske
t
D333F022U01
6.2 Connection dia
g
ram, standard D338D309U01
6.3 Connection dia
g
ram, preamplifier D338D310U01
7 Cheese head screws M4 x 18, DIN 912 D009G113AU20
7.1 Washer B 4.3, DIN 125 D085A021BU20
7.2 Retainin
g
rin
g
D106A001U25
8 Groundin
g
accessories D614L607U01
9 Shortin
g
j
umper
(
RM 2.54
)
D172A001U01
