3.4.10 Group trigger - General

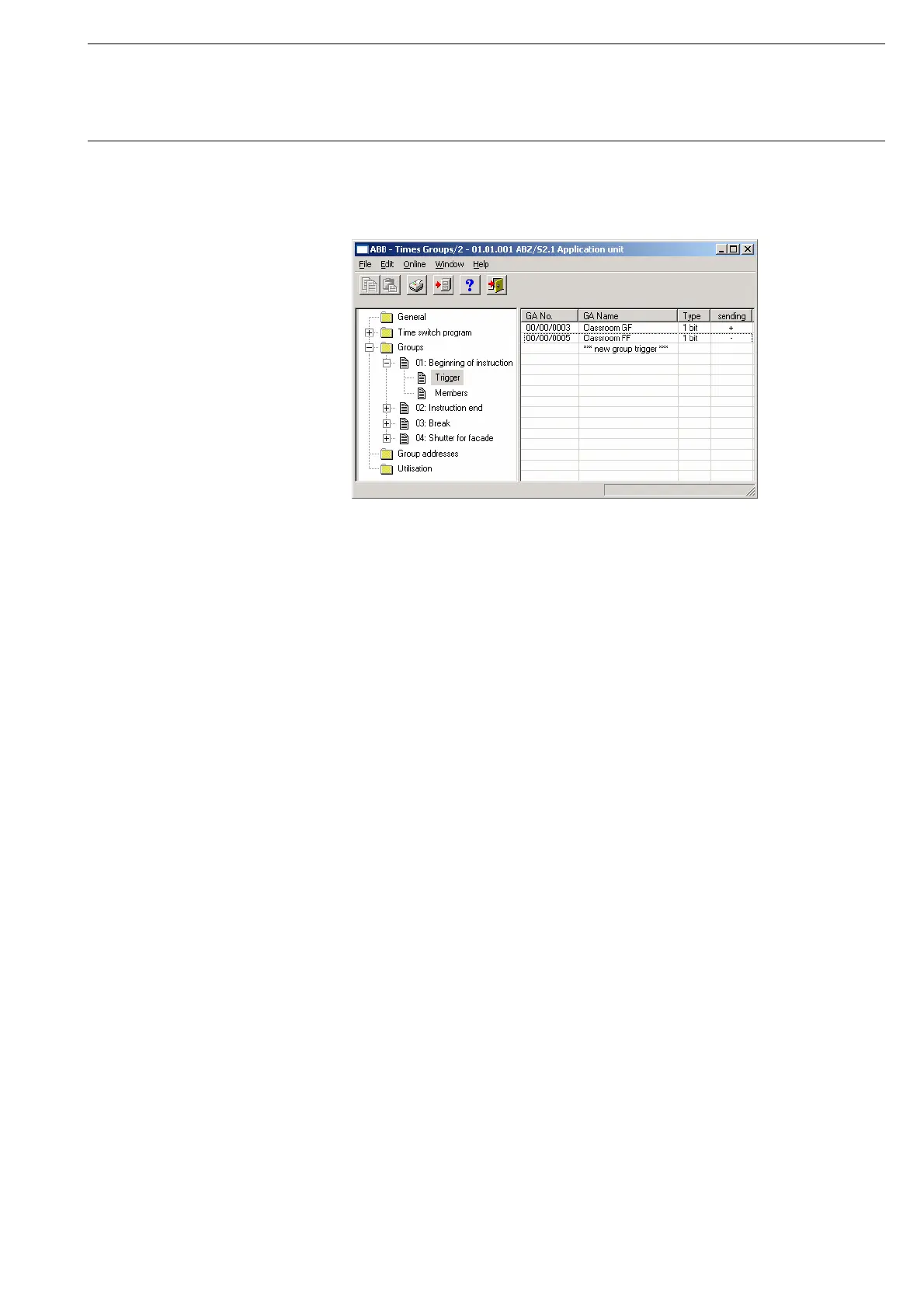

Fig. 160: Dialog window: “Group trigger - General”
The created triggers are shown in the folder Groups, 01: Beginning of
instruction and Trigger.
Group triggers trigger a group if
- the Application Unit Time receives a telegram whose group address has
been entered in the list of group triggers
- its value lies in the ranges which have been defined for triggering a group
and
- its value meets the criteria for triggering a group.
When triggering a group through the time switch program of the Application
Unit Time, the time switch program sends a telegram with a group address
which is simultaneously received by the Application Unit Time and thus
triggers the group.
