3.4.9.2 Edit group

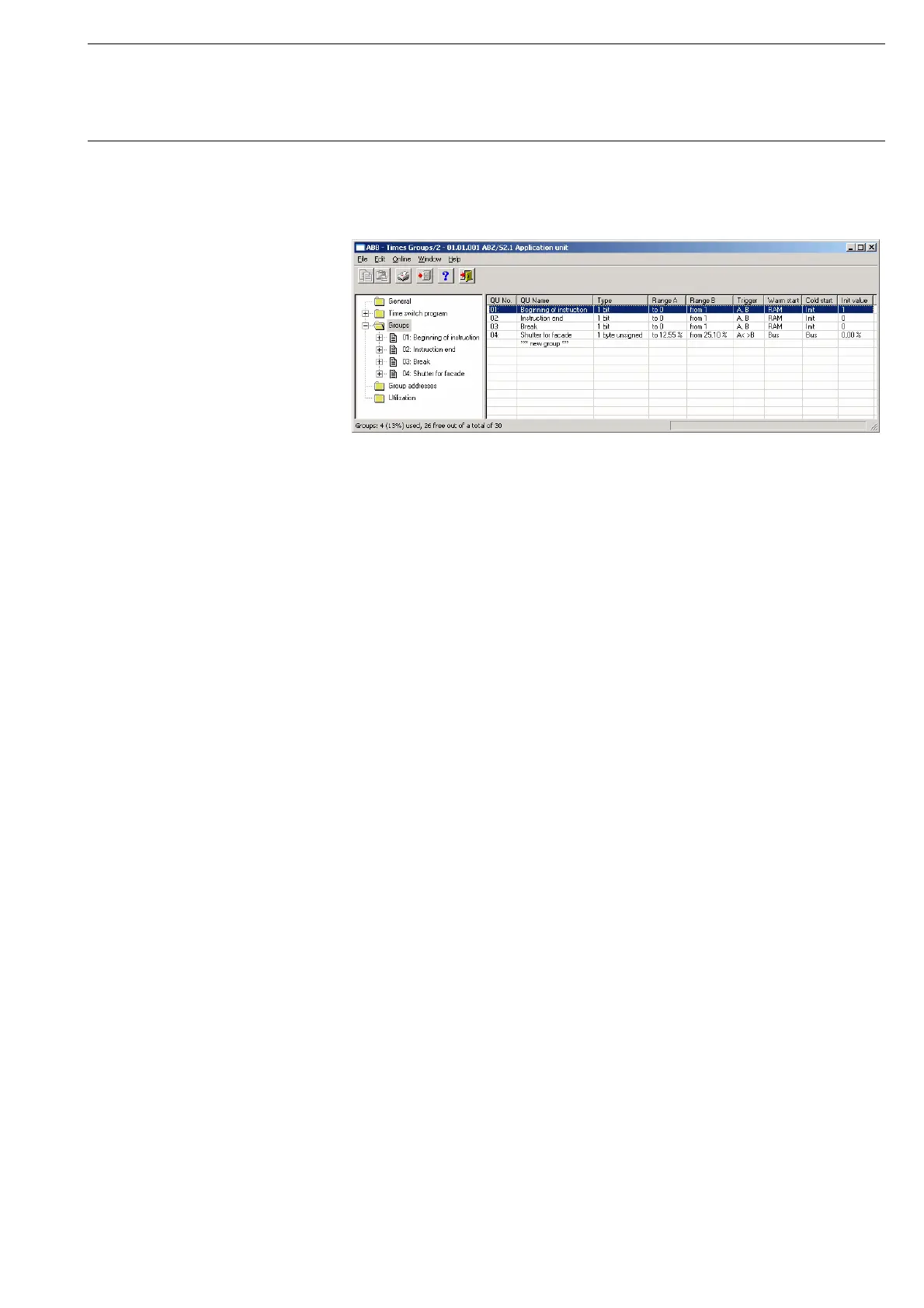

Fig. 140: Dialog window: “Edit group”
To edit a group, select Groups in the selection area e.g. QU No. 01.
The associated table is activated in the right-hand window.
The table is divided into QU No., QU Name, Type, Range A, Range B,
Trigger, Warm start, Cold start and Init value.
The meaning of the individual columns is as follows:
QU No., QU Name, Type, Range A, Range B, Trigger
This table lists the consecutive numbers of the group (QU No.), the name of
the group (QU Name), the type of the group trigger (Type), and the criteria
for the Trigger in Range A and Range B.
Warm start, Cold start, Init value
This table lists the behaviour in the event of a Warm start and a Cold start as
well as the associated Init value.
