3.4.10.1 Insert new group trigger

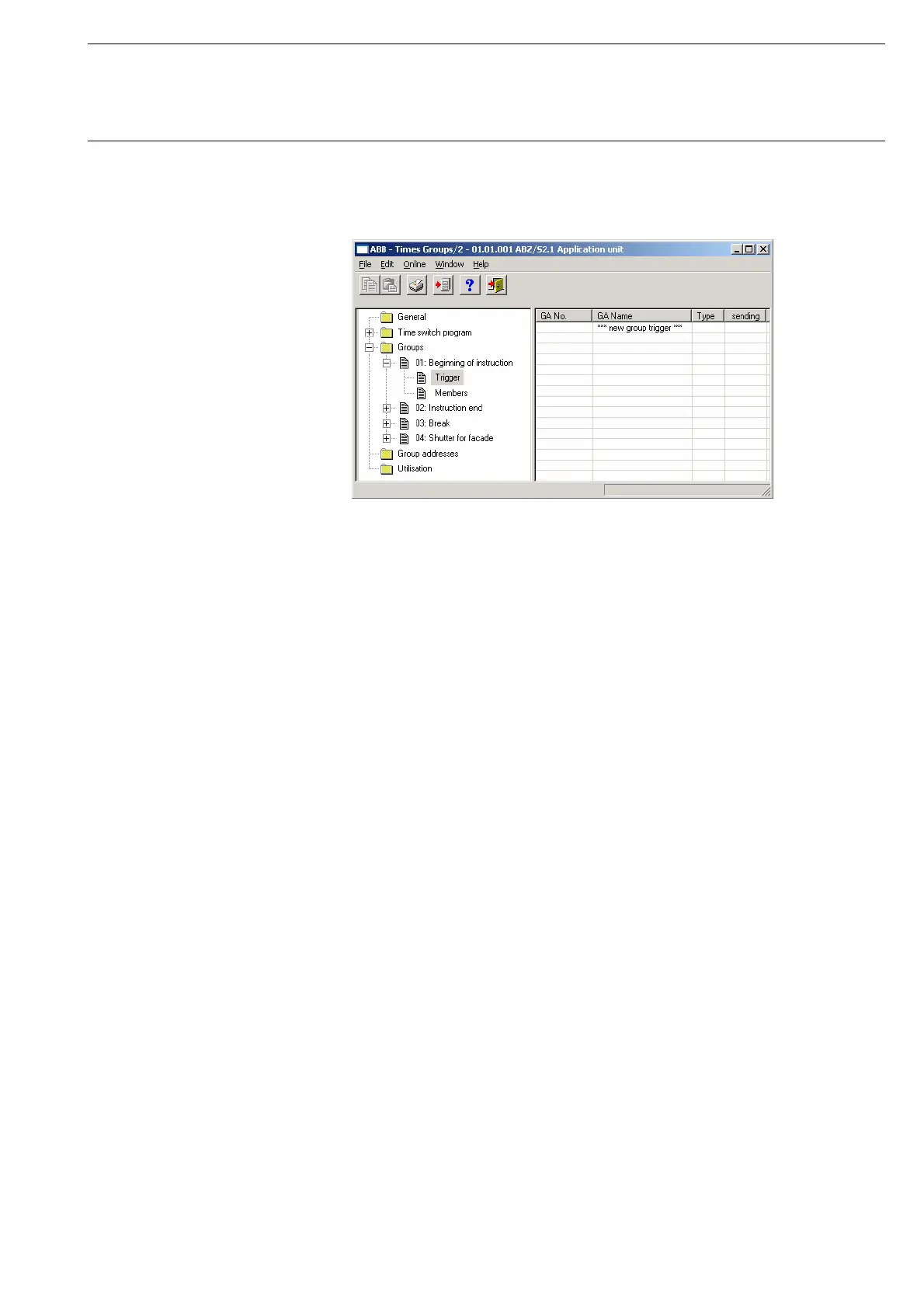

Fig. 161: Dialog window: “Insert new group trigger”
To insert a group trigger, select Groups, 01: Beginning of instruction and
Trigger in the selection area.
The associated table is activated in the right-hand window.
The table is divided into GA No., GA Name, Type and sending.
The meaning of the individual columns is as follows:
GA No.
The number of the group address is the unique identifier of a group address.
GA Name
The name of the group address is displayed here.
Type
The type indicates which type of values a telegram with this group address
can send.
sending
A + indicates that this group address is sent.
A – indicates that this group address is not sent.
Note: Only one group address can be set as sending for a group.
