3.3 Interface
3.3.1 ABB – Times Groups/2

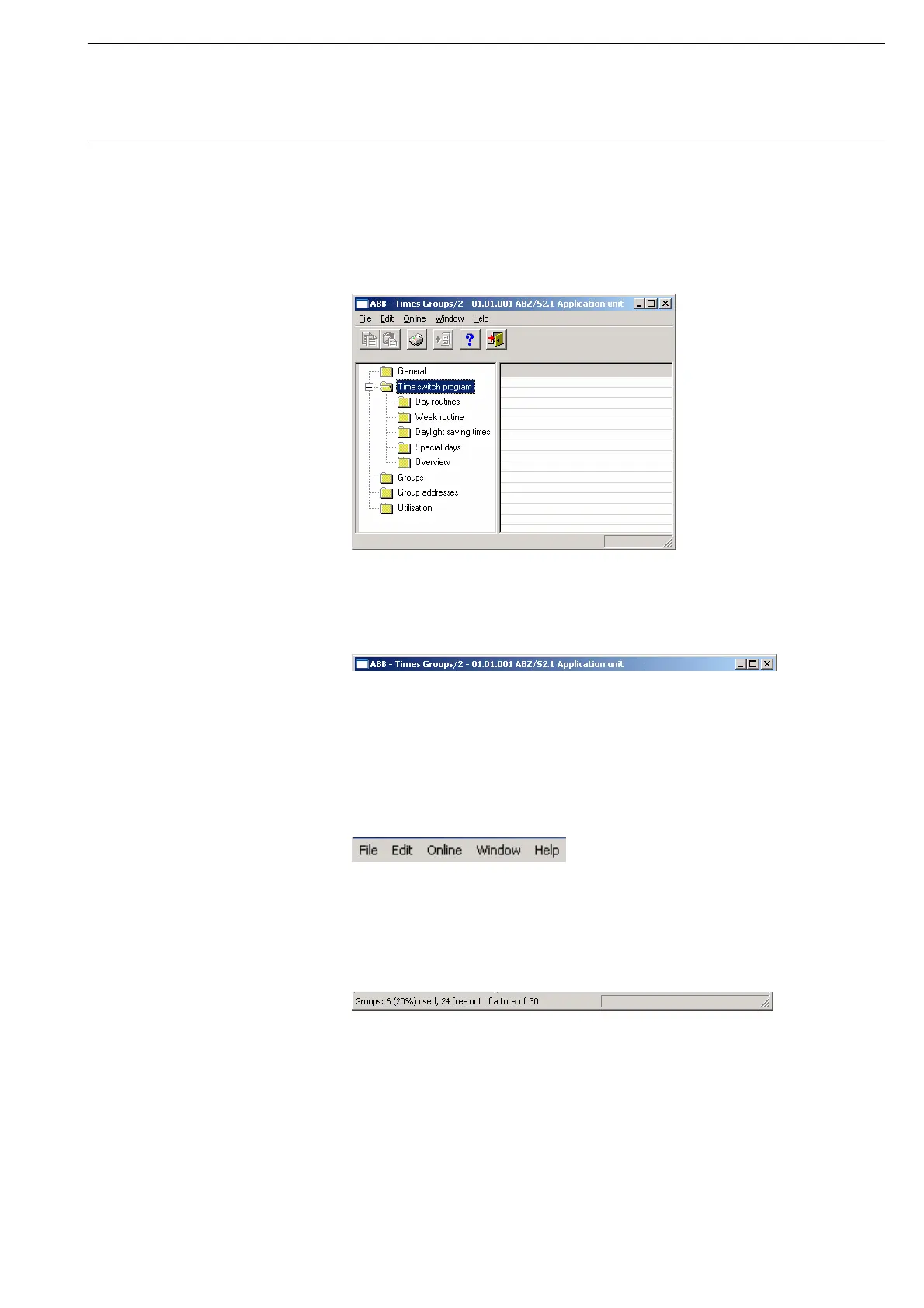

Fig. 5: “Times Groups/2” screen
3.3.2 Title bar
Fig. 6: “Title bar” screen
The title bar contains information about the manufacturer, the name of the
application program, the physical address as well as the type and the name
of the device.
3.3.3 Menu bar
Fig. 7: “Menu bar” screen
The File, Edit, Online, Window and Help menus are visible in the menu bar.
3.3.4 Status bar
Fig. 8: “Status bar” screen
The status bar can be activated or deactivated in the Window menu, under
the Status bar menu item.
If it is activated, it always forms the lower border of the parameter window. It
indicates for the current selection in the table area the number of available
elements for further entries.
