ABB i-bus EIB

Device technology
© 2006 ABB STOTZ-KONTAKT GmbH 9
ABB i-bus
®
EIB / KNX
Application program Max. number of
communication objects
Max. number of
group addresses
Max. number of
associations
Times Groups/2 250 250 254
Table 2: Application program
Note: ETS3 is required for programming. A file of type “.VD3” must be
imported. The application program is stored in ETS3 under
ABB/Controller/Controller.

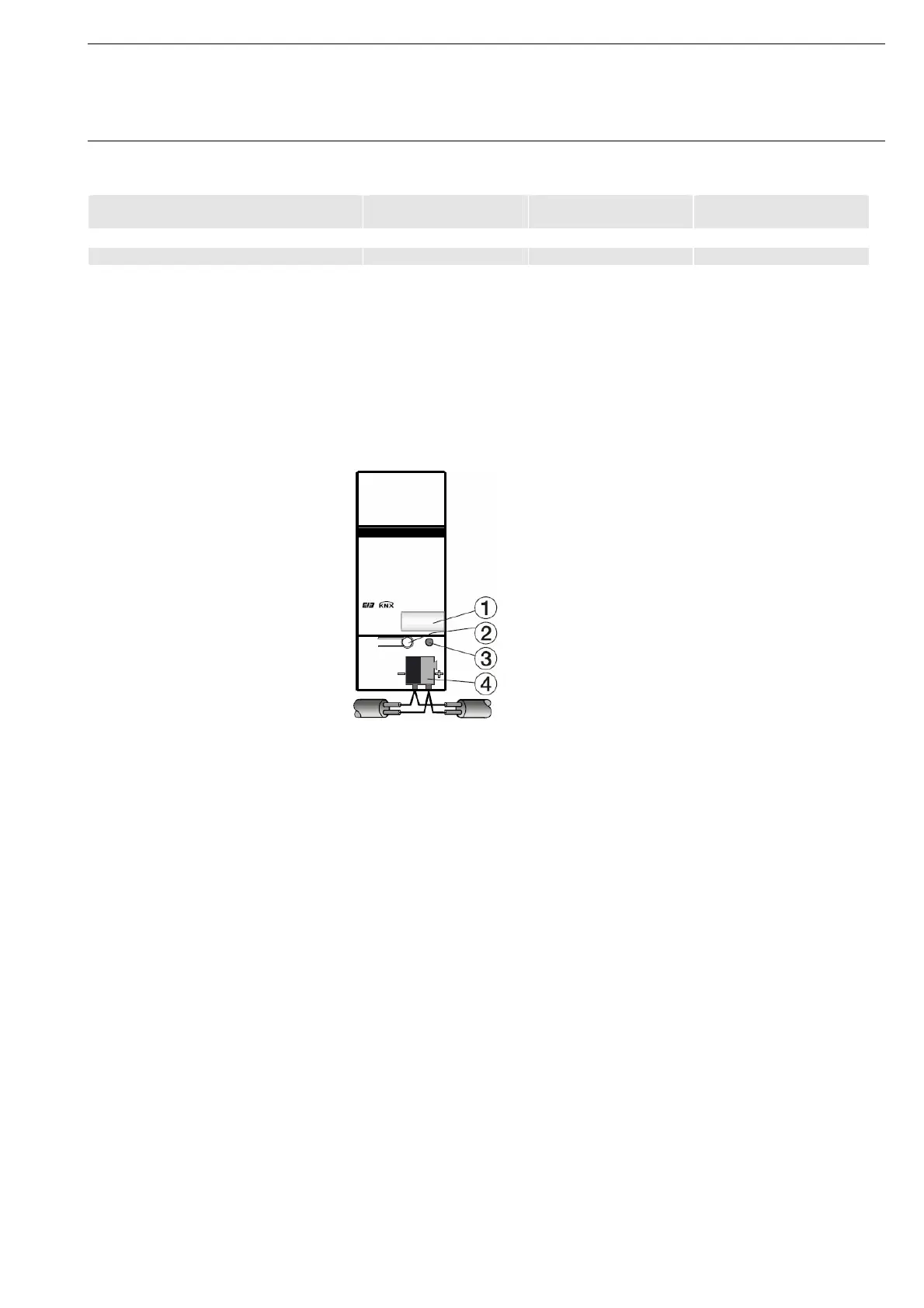

2.2 Circuit diagram
2CDC 072 053 F0005
Fig. 2: Circuit diagram
1 Label carrier
2 Programming button
3 Programming LED
4 Bus connecting terminal
