3.4.3.2 Edit day routines

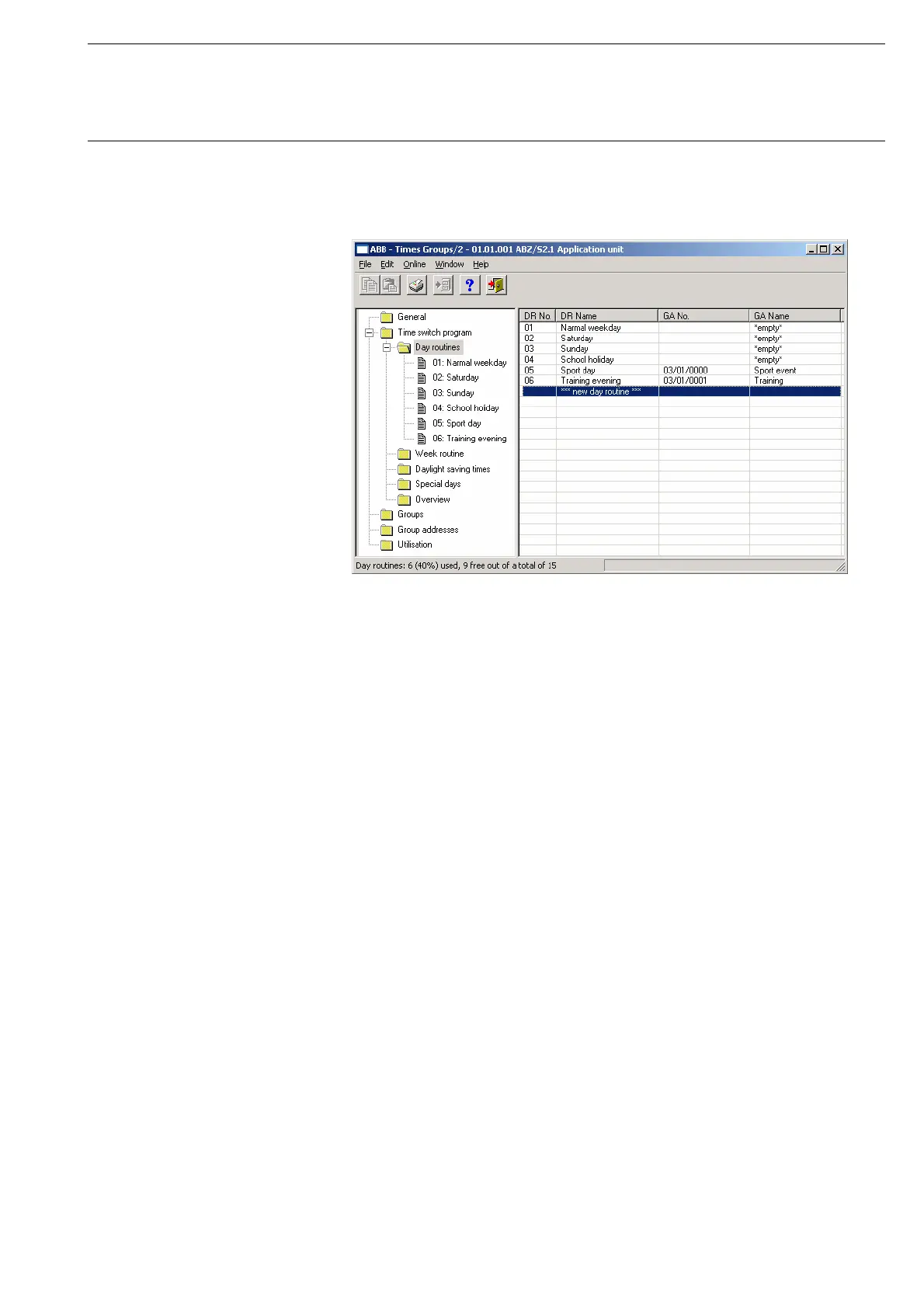

Fig. 56: Dialog window: “Edit day routines”
To edit a day routine, first select Time switch program in the selection area
followed by Day routines.
The associated table is activated in the right-hand window and the day
routines that have already been inserted are visible.
The table is divided into DR No., DR Name, GA No. and GA Name.
The meaning of the individual columns is as follows:
DR No., DR Name
This column displays the consecutive number of the day routine (DR No.)
and the name of the day routine (DR Name).
GA No., GA Name
If a telegram is able to activate a day routine, then the associated number
(DR No.) and the name (DR Name) of the group address is displayed which
can activate or deactivate this day routine.
Note: Day routines can be activated and/or deactivated by the time
switch program and/or a telegram.
