3.4.5.1 Insert new week routine
Note Before a week routine is inserted, a day routine and a switching
time must have been created under Day routines.

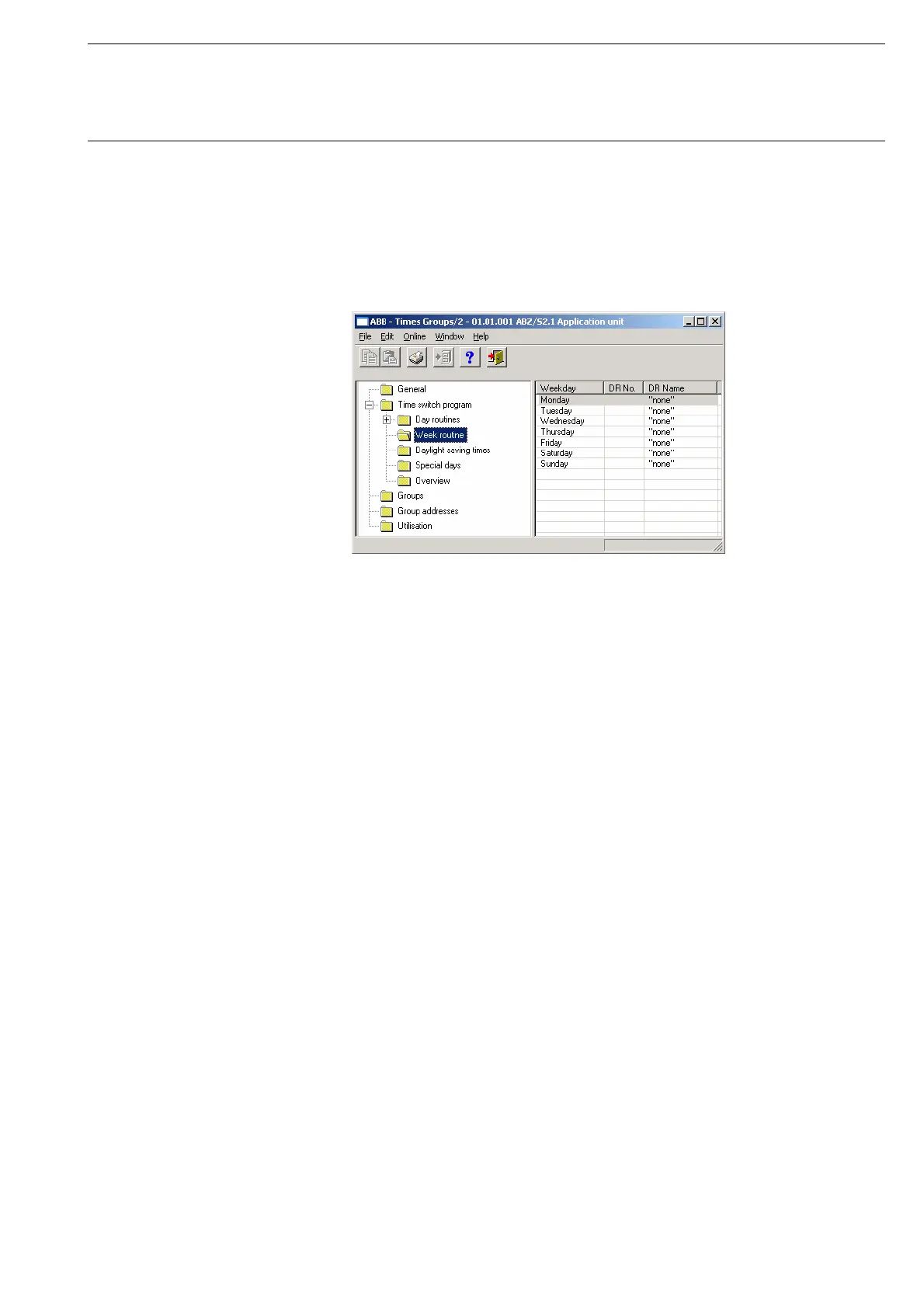

Fig. 101: Dialog window: “Insert week routine”
To insert a week routine, first select Time switch program in the selection
area followed by Week routine.
The associated table is activated in the right-hand window.
The table is divided into Weekday, DR No. and DR Name.
The meaning of the individual columns is as follows:
Weekday
All the days of the week are automatically displayed in this column.
DR No., DR Name
This column displays the consecutive numbers of the day routines (DR No.)
and the names of the day routines (DR Name).
Note: If no day routines have yet been assigned to a weekday, there
is no day routine number (DR No.) and “none” is entered as the
name of the day routine (DR Name).
