3.4.5.3 Delete week routine

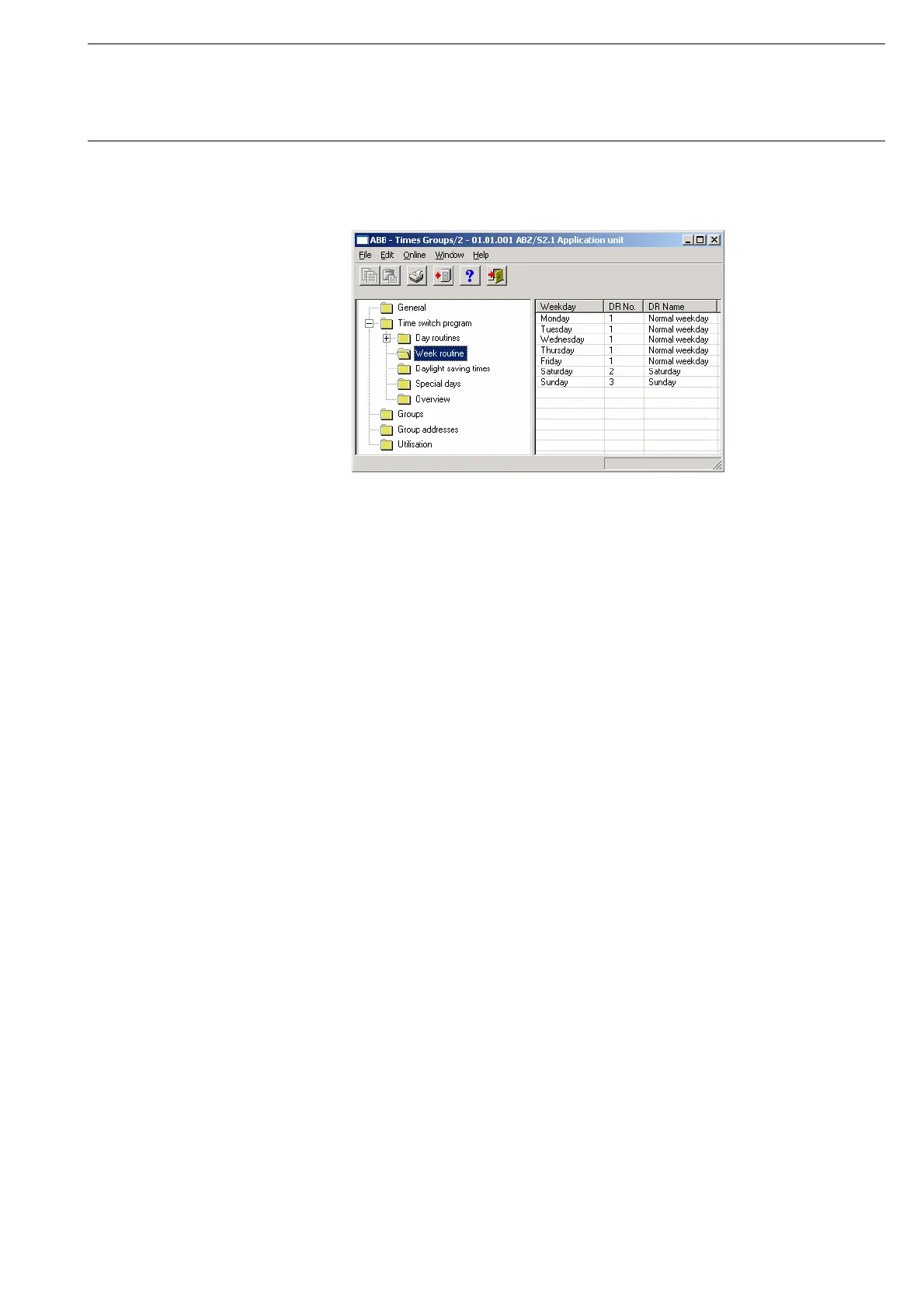

Fig. 105: Dialog window: “Delete week routine”
To delete a week routine, first select Time switch program in the selection
area followed by Week routine.
The associated table is activated in the right-hand window.
The table is divided into Weekday, DR No. and DR Name.
The meaning of the individual columns is as follows:
Weekday
This column displays the weekdays that have been created.
DR No., DR Name
This column displays the consecutive numbers of the day routines (DR No.)
and the names of the day routines (DR Name).
Note: If no day routines have yet been assigned to a day of the week,
no day routine number (DR No.) is displayed and “none” is
entered as the name of the day routine (DR Name).
