ABB i-bus EIB

Commissioning
© 2006 ABB STOTZ-KONTAKT GmbH 195
ABB i-bus
®
EIB / KNX
Type 1 byte unsigned (0…255)

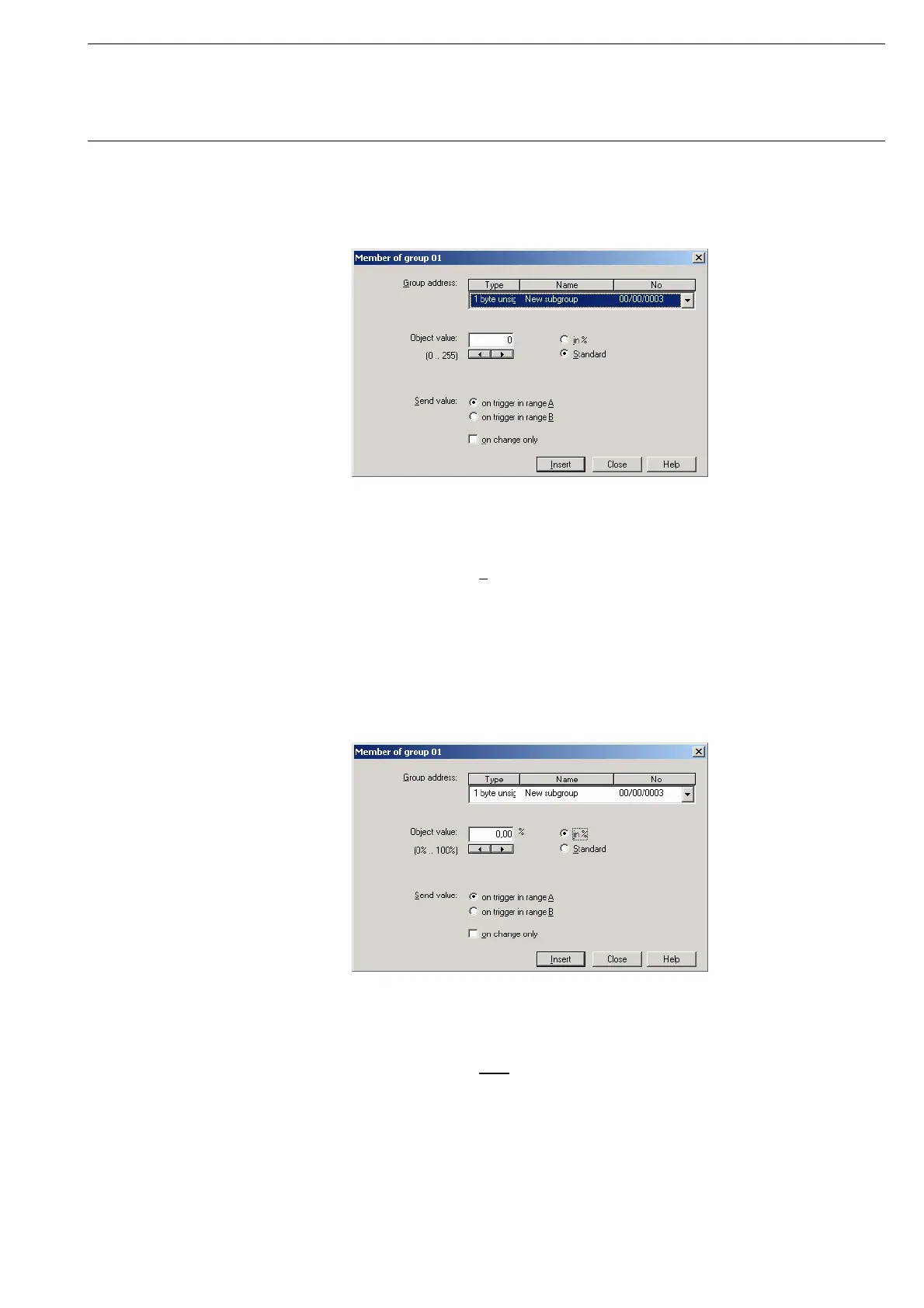

Fig. 186: Parameter window: “Group member, Data type 1 byte unsigned (0…255)”
Object value (0…255) and Standard
Options: 0
…255
This parameter is used to select which object value is sent.
If Standard is also selected, the object value is issued without a unit of
measurement.
Type 1 byte unsigned (0…100%)
Fig. 187: Parameter window: “Group member, Data type 1 byte unsigned (0…100%)”
Object value (0…100%) and in %
Options: 0.00
…100%
This parameter is used to select which object value is sent.
If the option in % is also selected, 0 = 0% and 255 = 100% are assigned to
the object values.
