Commissioning
© 2006 ABB STOTZ-KONTAKT GmbH 39
ABB i-bus
®
EIB / KNX
After selecting the option new group address, the associated dialog window
Add group addresses is activated.

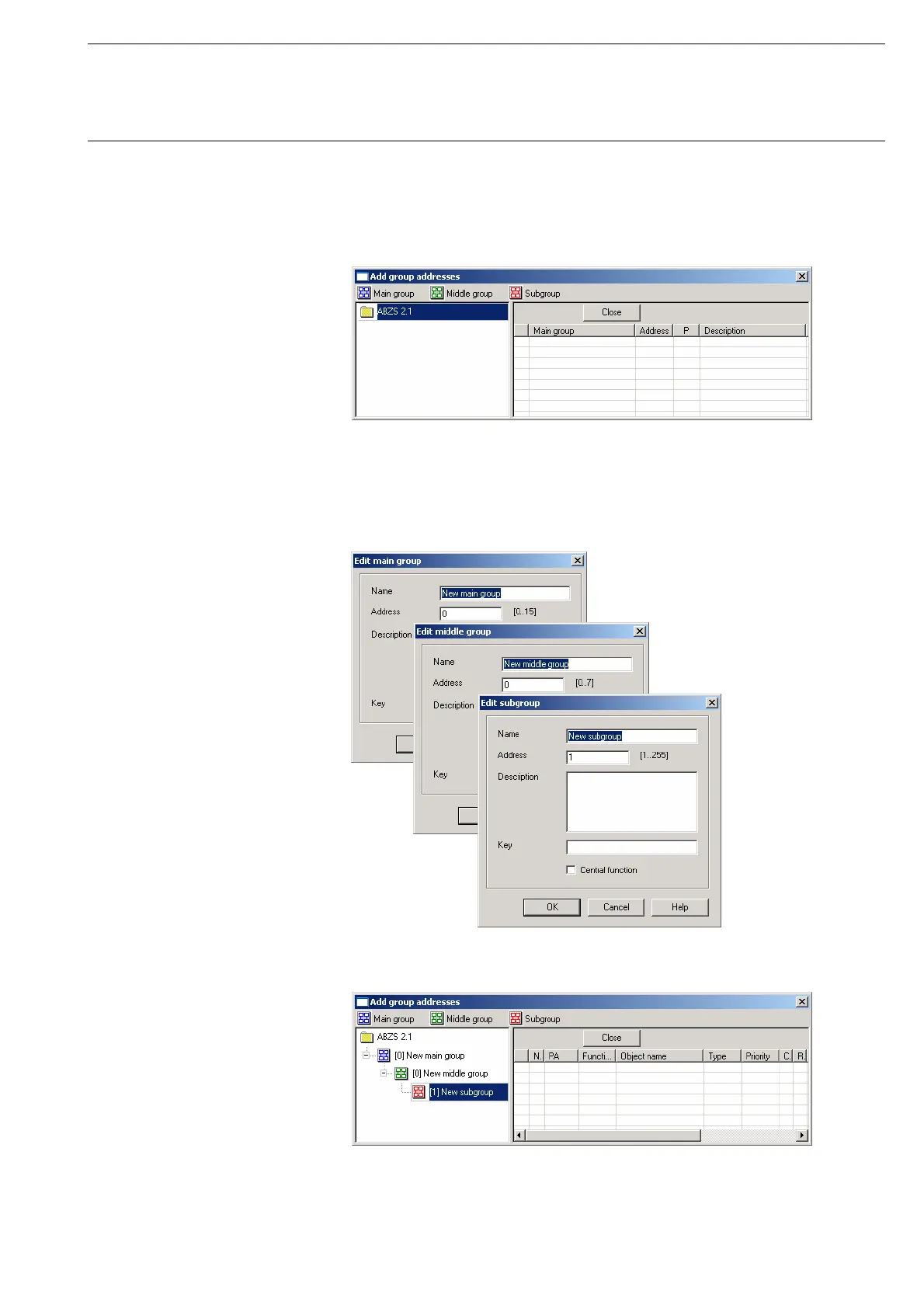

Fig. 37: Dialog window: “Operating mode of clock, Add group addresses”
The main group, middle group and the subgroup are created in sequence via
drag & drop.
Fig. 38: Parameter window: “Operating mode of clock, Create new main group, middle group and
subgroup”
Fig. 39: Dialog window: “Operating mode of clock, Main group, middle group and subgroup created”
