5.3.2 Replacing the SMB unit
Location of the SMB unit

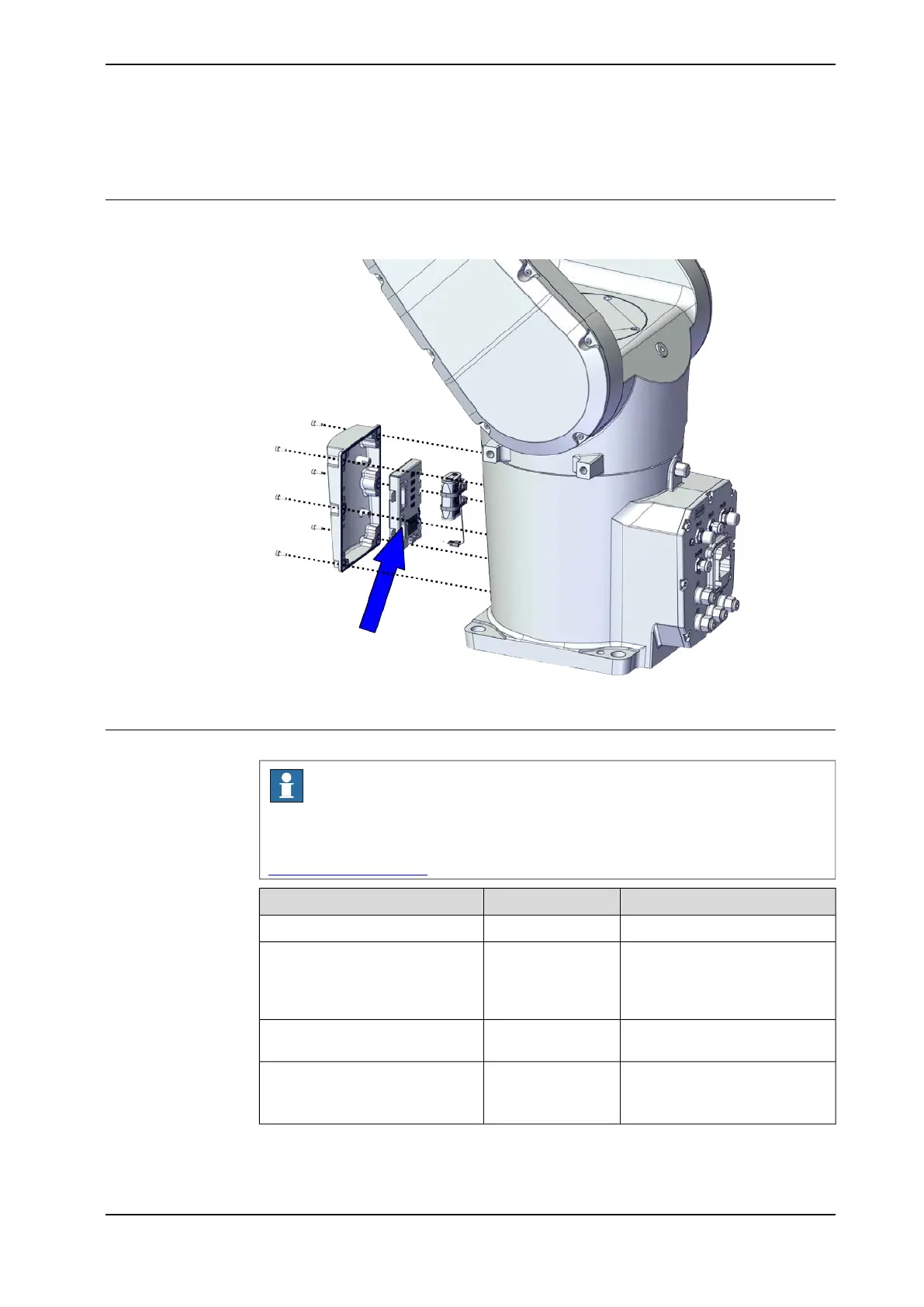

The SMB unit is located as shown in the figure.
xx2000001494
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the IRB 1300 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
3HAC063968-001Serial measurement unit
Used with protection classes IP40
and IP67.
Used with protection type
Foundry Plus.
3HAC076475-001SMB cover
Used with protection type Clean
Room.
3HAC077839-001SMB cover, Clean Room
Not used with protection class
IP40.
Replace if damaged.
3HAC067820-001Gasket for SMB cover
Continues on next page
Product manual - IRB 1300 193
3HAC070390-001 Revision: G
