5.5.3 Replacing the tubular and tilt unit
Locations of the tubular and tilt unit

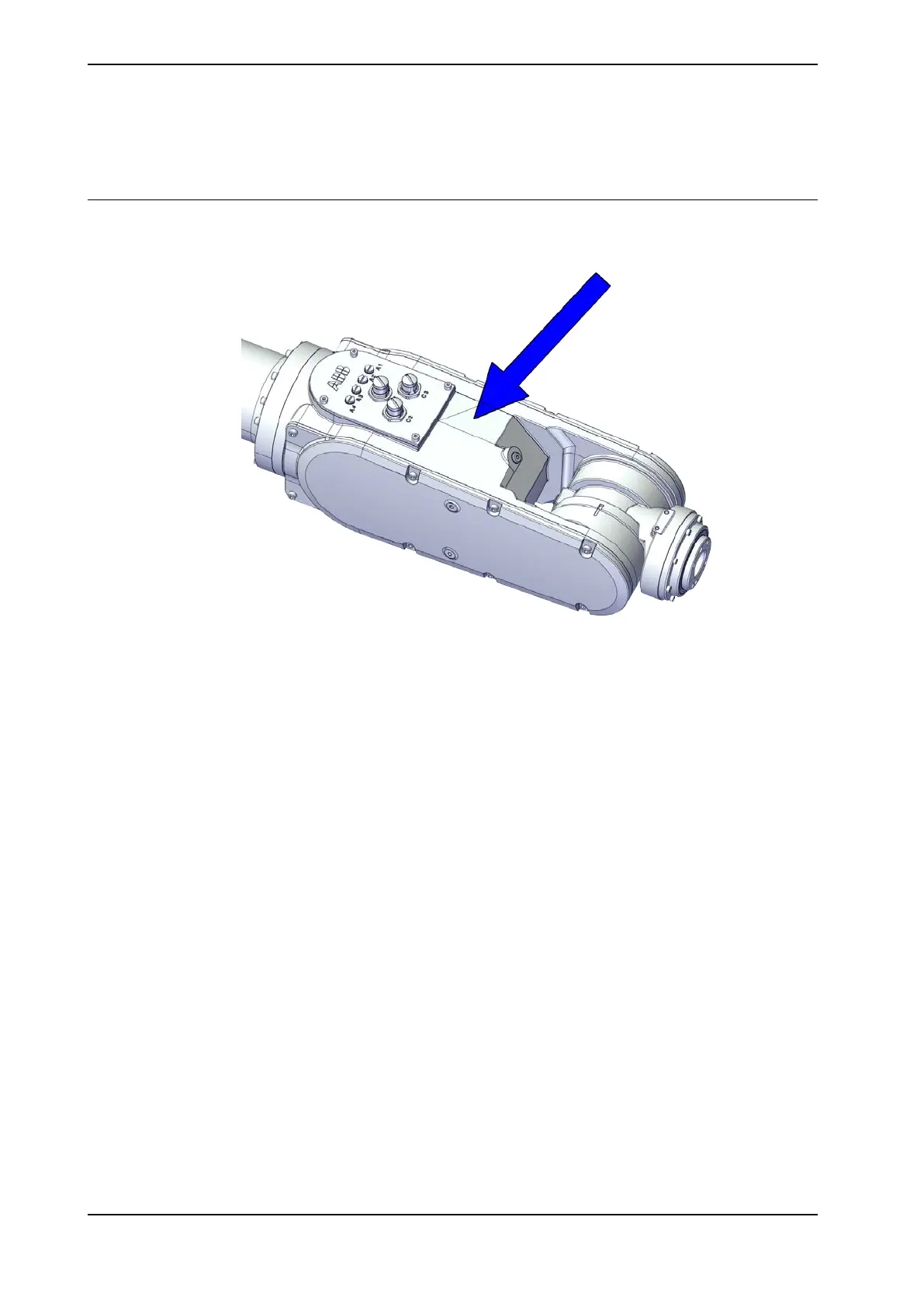

The tubular is located as shown in the figure.
xx2000001478
