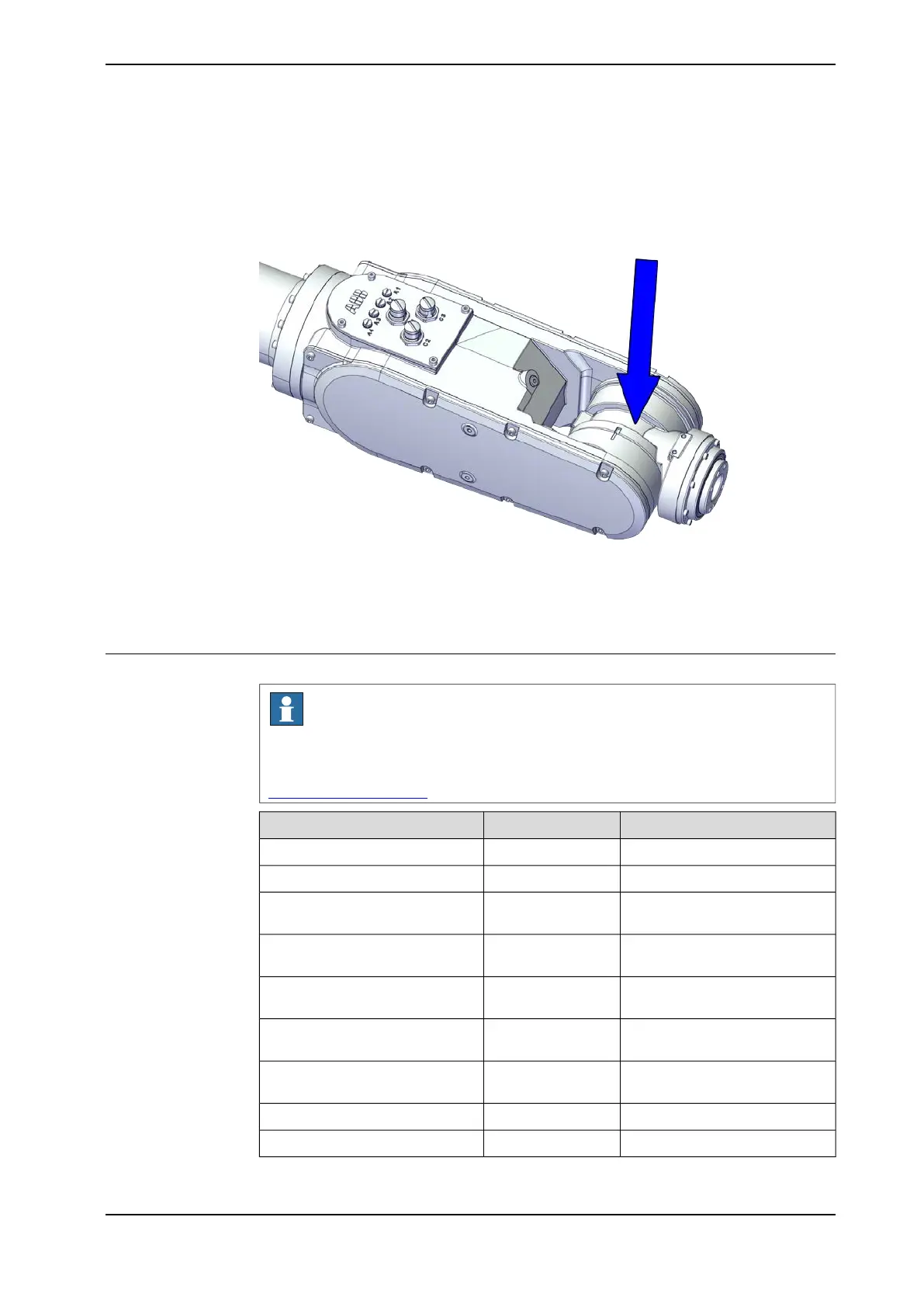

The tilt unit is located as shown in the figure.
xx2000001479
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the IRB 1300 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
3HAC073083-001Tilt unit
Used with protection class IP67.3HAC077804-001Tilt unit, IP67
Used with protection type Clean
Room.
3HAC077817-001Tilt unit, Clean Room
Used with protection type
Foundry Plus.
3HAC077851-001Tilt unit, Foundry Plus
Used with protection classes IP40
and IP67.
3HAC073081-001Tubular
Used with protection type Clean
Room.
3HAC077815-001Tubular, Clean Room
Used with protection type
Foundry Plus.
3HAC077849-001Tubular, Foundry Plus
3HAC073082-001Tubular support
Used with protection class IP67.3HAC077803-001Tubular support, IP67
Continues on next page
Product manual - IRB 1300 413
3HAC070390-001 Revision: G
