NoteAction
xx2000002500
For robots with protection class IP67 (option
3350-670)
For robots with protection type Clean Room
(option 3351-4)
For robots with protection type Foundry Plus
(option 3352-10)

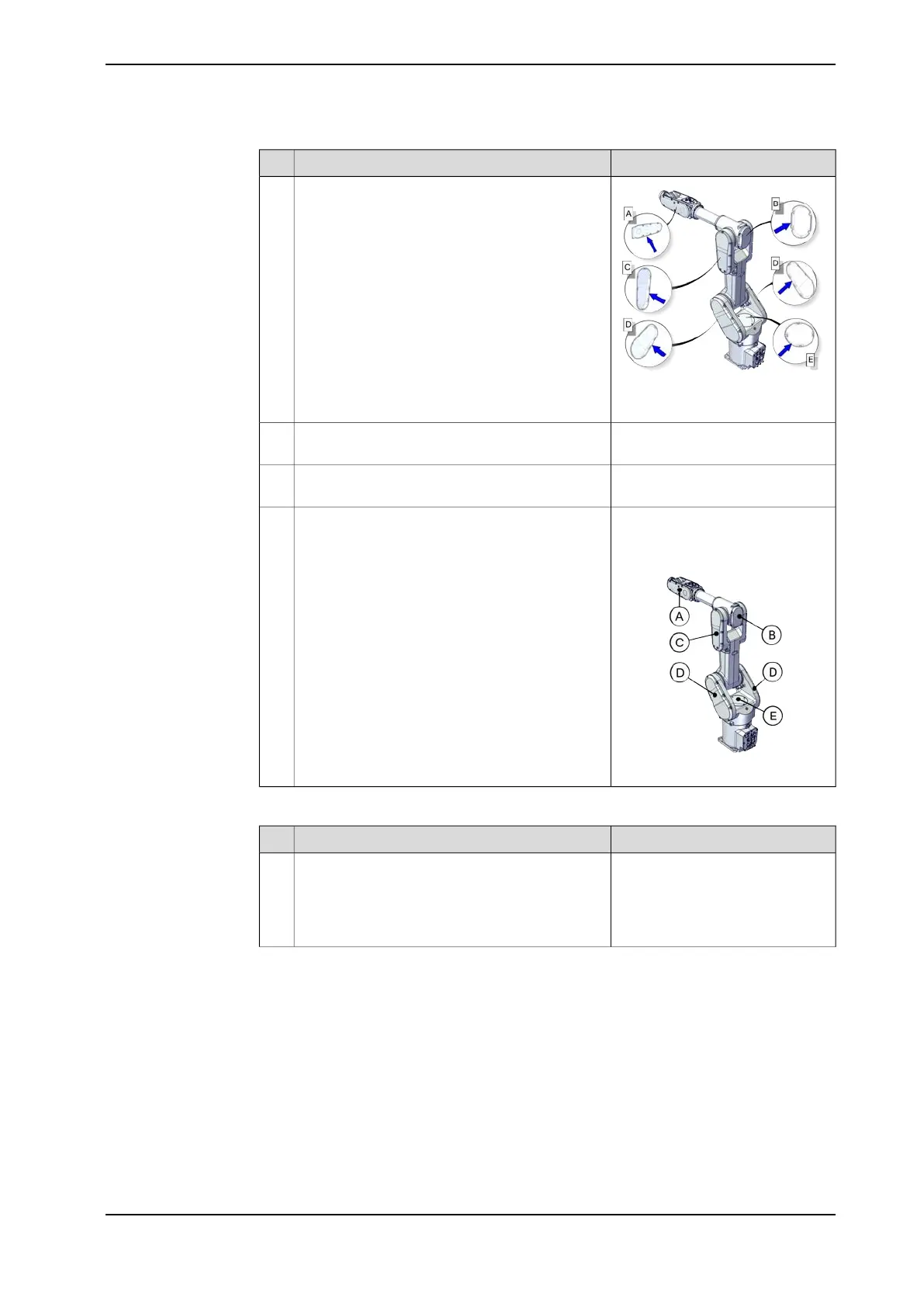

Check the gaskets.
• Gasket for tubular support cover (A)
• Gasket for housing cover (B)
• Gasket for lower arm support cover (C)
• Gasket for swing covers (D)
• Gasket for swing top cover (E)
Replace if damaged.
2
Grease: 3HAC029132-001Apply grease to the cable package, cover all
moving area of the package.
3
Grease: 3HAC029132-001Apply grease to the covers that have contacting
area with the cable package.
4
Screw: M4x10 12.9 Lafre
2C2B/FC6.9
Refit the covers.
• Tubular support cover (A)
• Housing cover (B)
• Lower arm support cover (C)
• Swing covers (D)
• Swing top cover (E)
5
Tightening torque: 2.6 Nm
xx2000001722
Jogging the robot to oil filling position
NoteAction
Turn on the electric power to the robot.1
If the robot is not connected to the controller,
power must be supplied to the connector R1.MP
according to Supplying power to connector R1.MP
on page 66.
Continues on next page
Product manual - IRB 1300 285
3HAC070390-001 Revision: G
© Copyright 2020-2022 ABB. All rights reserved.
5 Repair
5.4.2 Replacing the swing
Continued
