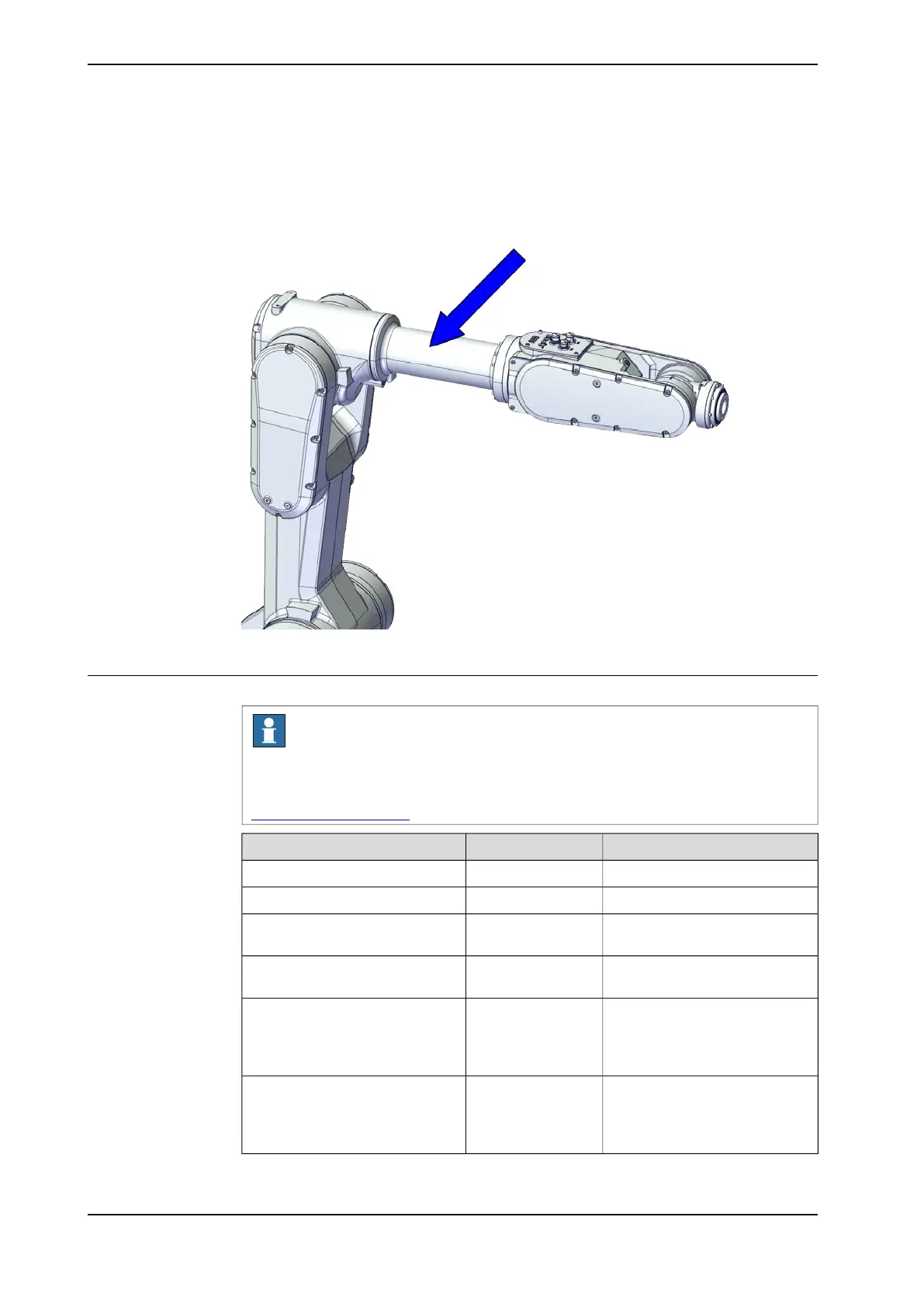

The extender unit (only for IRB 1300-7/1.4 and IRB 1300-12/1.4) is located as shown
in the figure.
xx2000001477
Required spare parts
Note
The spare part numbers that are listed in the table can be out of date. See the
latest spare parts of the IRB 1300 via myABB Business Portal,
www.abb.com/myABB.
NoteArticle numberSpare part
3HAC073079-001Housing
Used with protection class IP67.3HAC077801-001Housing, IP67
Used with protection type Clean
Room.
3HAC077814-001Housing, Clean Room
Used with protection type
Foundry Plus.
3HAC077848-001Housing, Foundry Plus
Used for IRB 1300-7/1.4 and IRB
1300-12/1.4.
Used with protection classes IP40
and IP67.
3HAC073085-001Extender unit
Used for IRB 1300-7/1.4 and IRB
1300-12/1.4.
Used with protection type Clean
Room.
3HAC077818-001Extender unit, Clean Room
Continues on next page
360 Product manual - IRB 1300
3HAC070390-001 Revision: G
© Copyright 2020-2022 ABB. All rights reserved.
5 Repair
5.5.2 Replacing the housing and extender unit
Continued
