NoteAction
xx2000001594

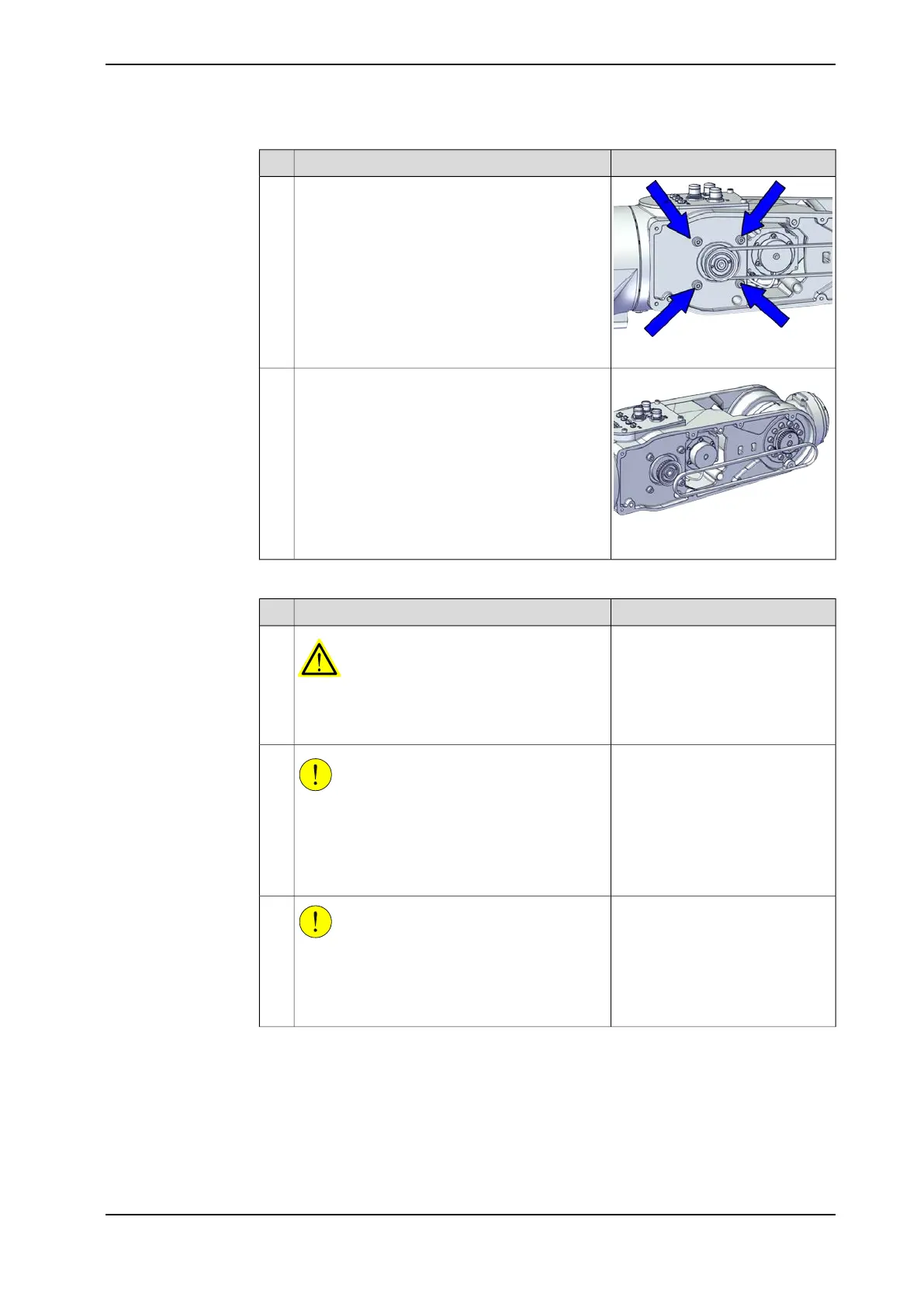

Loosen the screws and move the motor slightly
to slacken the timing belt.
4
xx2000001595
Remove the timing belt from its groove on the
motor.
5
Removing the axis-6 timing belt
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
For robots with protection type Clean Room
Always cut the paint with a knife and grind the
paint edge when disassembling parts of the robot!
See Cut the paint or surface on the robot before
replacing parts on page 145.
2
CAUTION
Loosening timing belts will release axes. This
means the axes can fall down.
Make sure axes are well supported before
loosening timing belts.
3
Continues on next page
Product manual - IRB 1300 569
3HAC070390-001 Revision: G
© Copyright 2020-2022 ABB. All rights reserved.
5 Repair
5.6.6 Replacing the axis-6 motor
Continued
