Location of cable harness - lower end (axes 1-3)

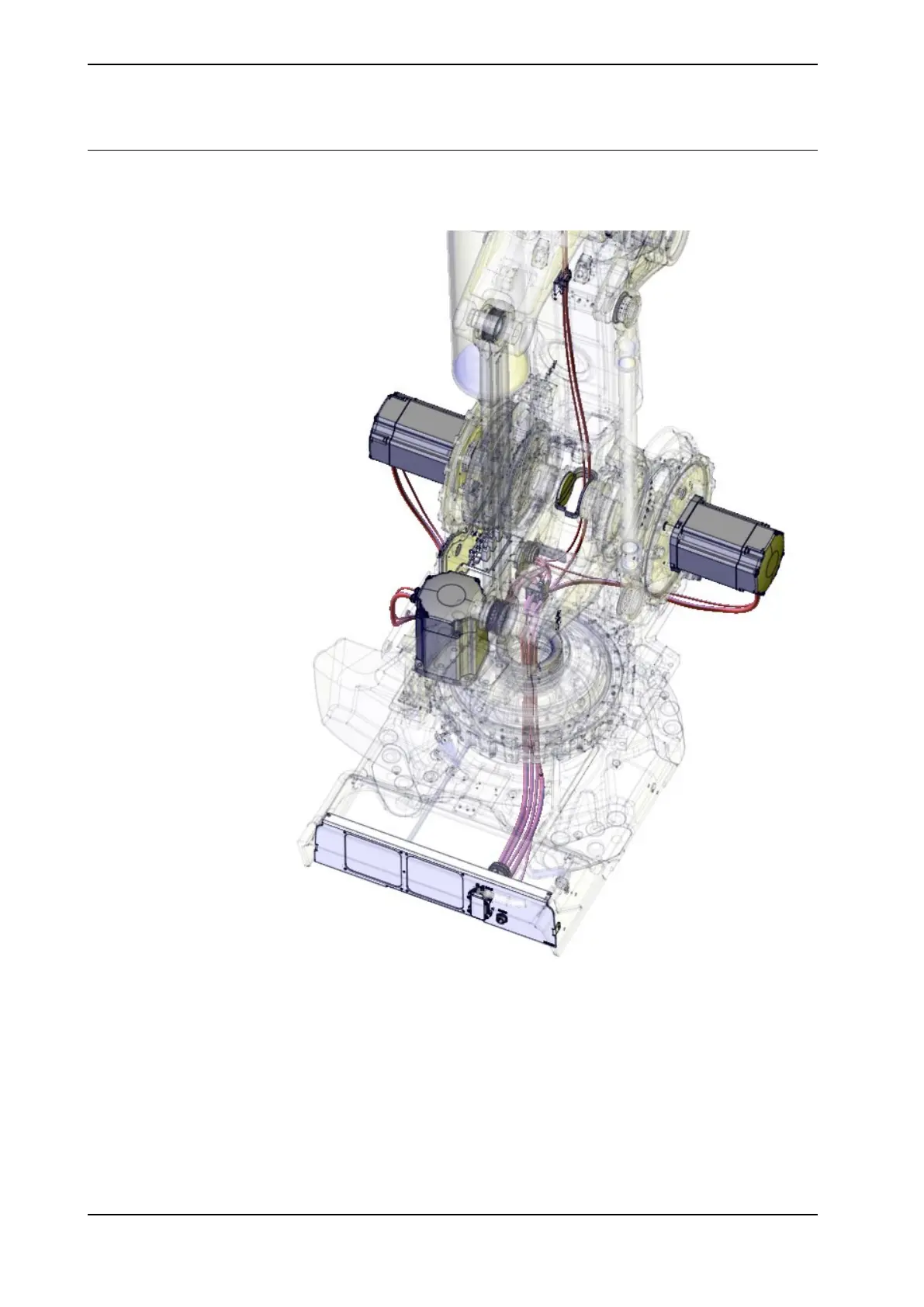

The cable harness, lower end (axes 1-3) is located throughout the base, frame and
lower arm as shown in the figure.
xx1000001177
