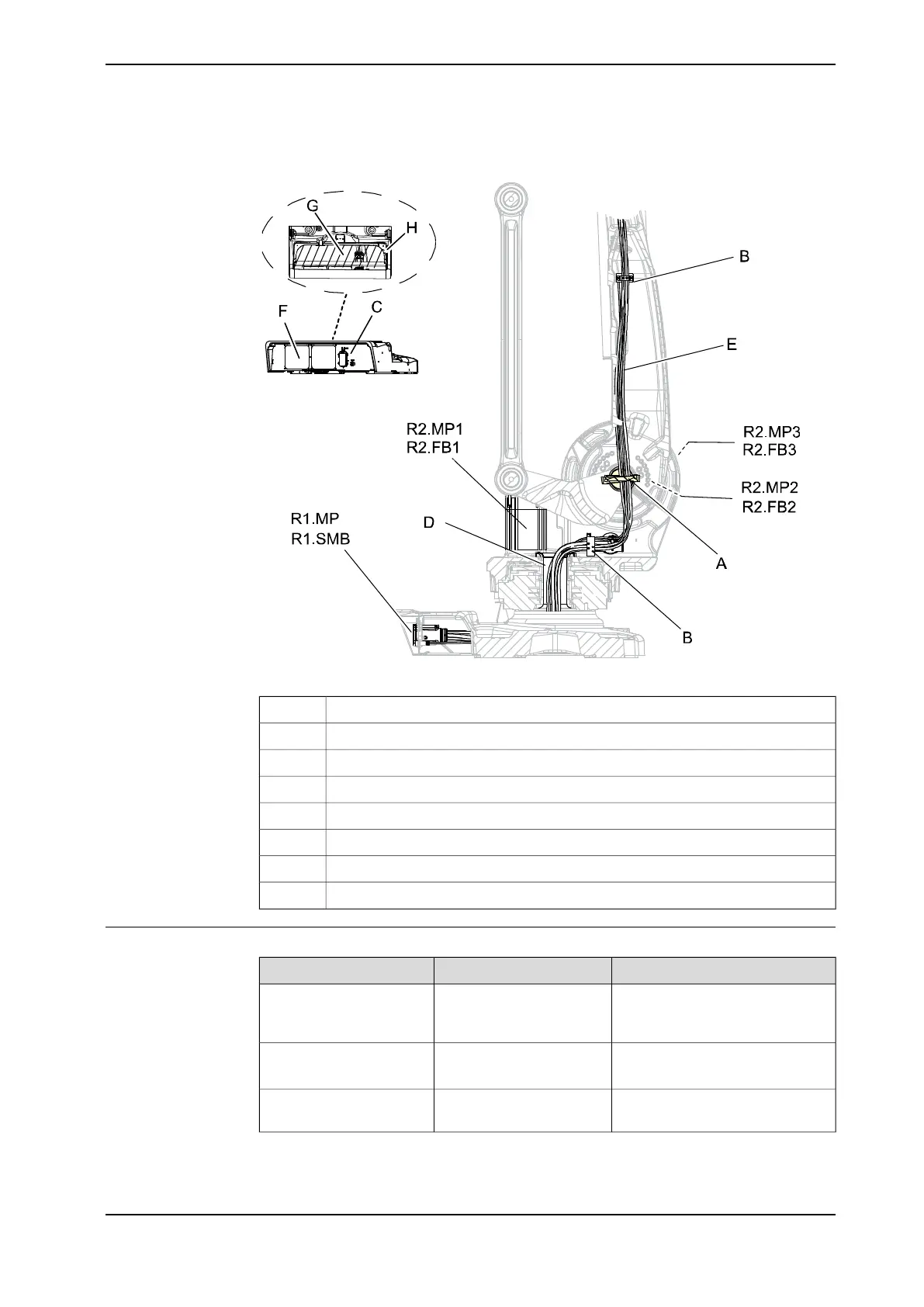

The figure shows IRB 660 but is also valid for IRB 760.
xx0700000070
Cable guide, axis 2A
Metal clampB
Connector at baseC
Cable guide, axis 1D
Cable harness, axes 1-6E
Cover plateF
Rear cover plateG
Attachment point for earth lugH
Required equipment
NoteArt.no.Equipment, etc.
For spare part no. see:
• Spare parts on
page 355
Cable harness 1-6
Motor, axes 1-3Gasket
Replace if damaged.
The content is defined in the sec-
tion Standard tools on page 351.
