NoteAction
xx1000001419

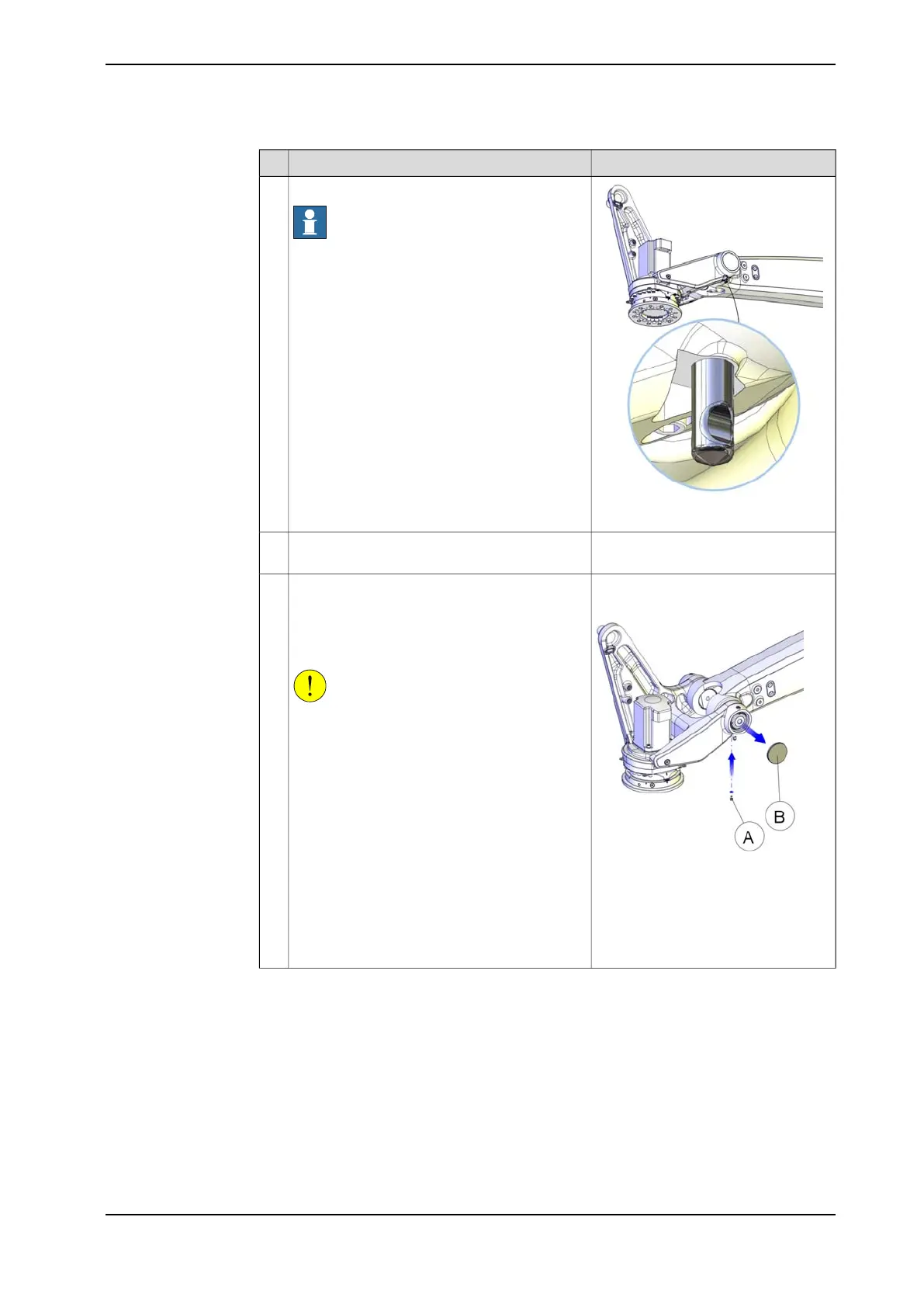

Be careful not to damage the ball plug!
Note
Do not remove the ball plug!
8
Remove one shaft at a time by following the
steps below, starting on axis 2 side.
9
xx1000001072
Use compressed air in the M6 hole for filling
grease, in order to remove the VK cover. Do
this on both sides.
Put a hand with some paper over the VK cover
in order to catch it.
CAUTION
Only a very low air pressure is needed!
10
Parts:
A Screw M6x10 quality steel 8.8-
A2F
B Washer
Continues on next page
3HAC039838-001 Revision: C 199
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
