NoteAction
xx1000001073

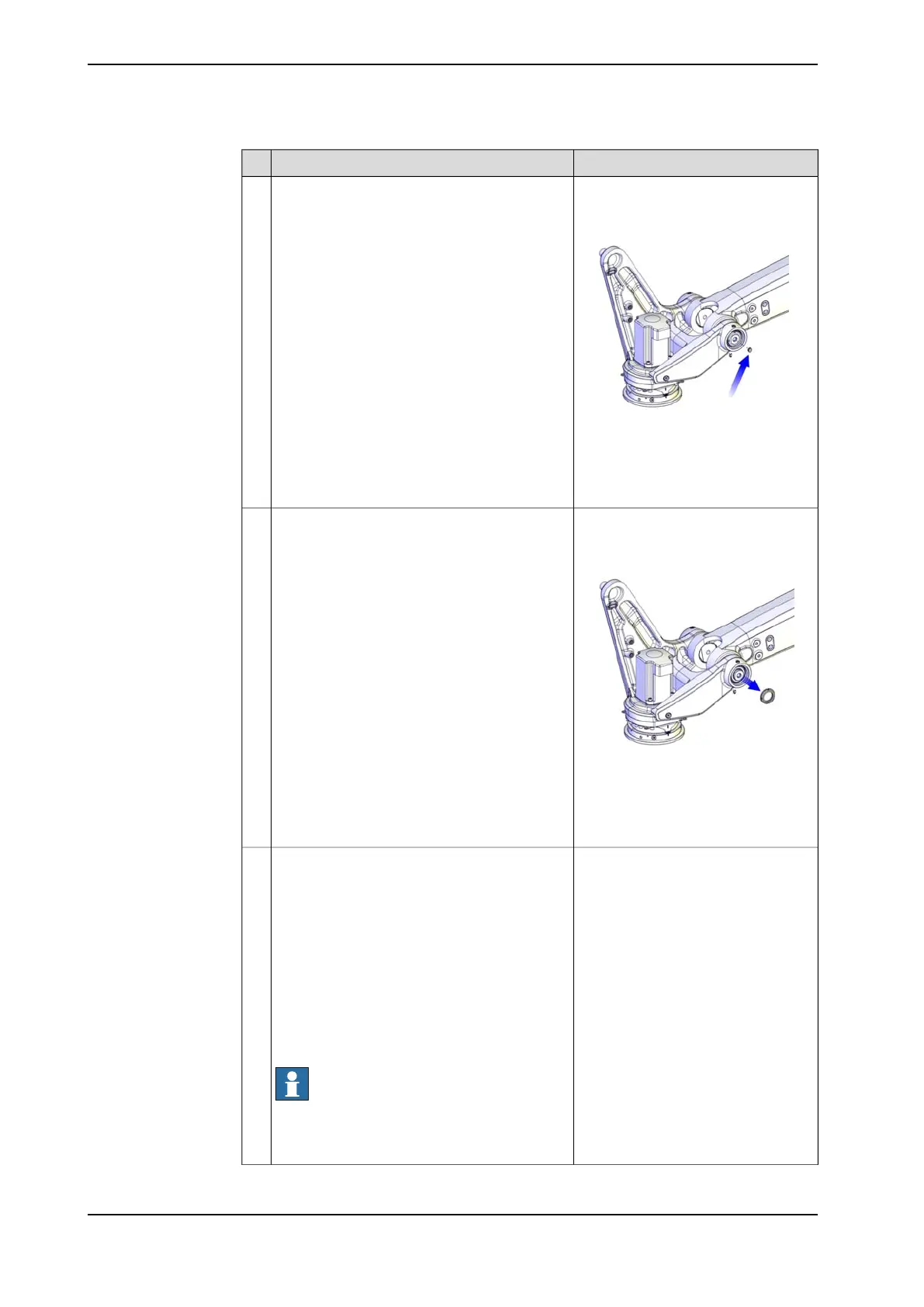

Remove the small VK cover inside with the help
of a short punch or similar.
11
xx1000001074
Remove the lock nut.12
Art.no. is specified in Required equip-
ment on page 194.
Apply the press tool, mounting axis 6 in the
following way:
• Push the torsion bar L=900 through the
holes in the shafts.
• Apply the washer and the nut on the right
side of the right shaft.
• Put the distance ring on the bar on the
left side of the shaft
• Apply the hydraulic pump on the bar
• Secure the hydraulic pump with a nut.
Remove the shaft with the press tool, mounting
axis 6 by following the steps below.
Note
A longer threaded bar M16 is needed when re-
moving the shaft than the one specified when
fitting.
13
Continues on next page
200 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
