NoteAction
xx1000001075

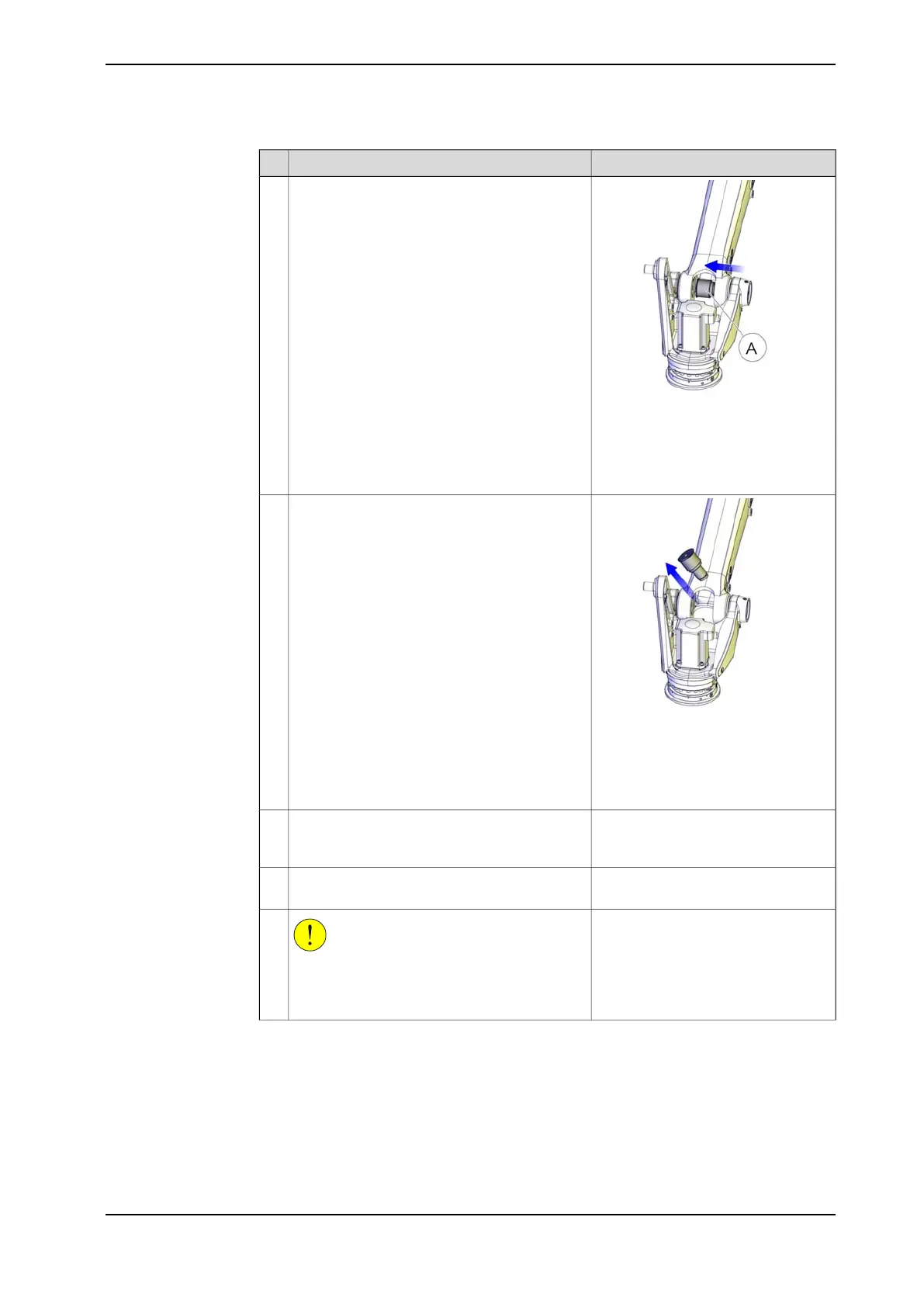

Press out the shaft with the press tool.14
xx1000001076
Remove the press tool, mounting axis 6 and
the shaft.
15
Check that the tilthouse is secured in a over-
head crane or similar before proceeding with
the next shaft.
16
Follow steps above.Remove the shaft on the axis 3 side in the same
way.
17
CAUTION
The robot tilt house weighs 85 kg.
All lifting accessories used must be sized ac-
cordingly!
18
Continues on next page
3HAC039838-001 Revision: C 201
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.2 Replacing the tilthouse unit
Continued
