NoteAction
Replace if damaged.
xx1000001259

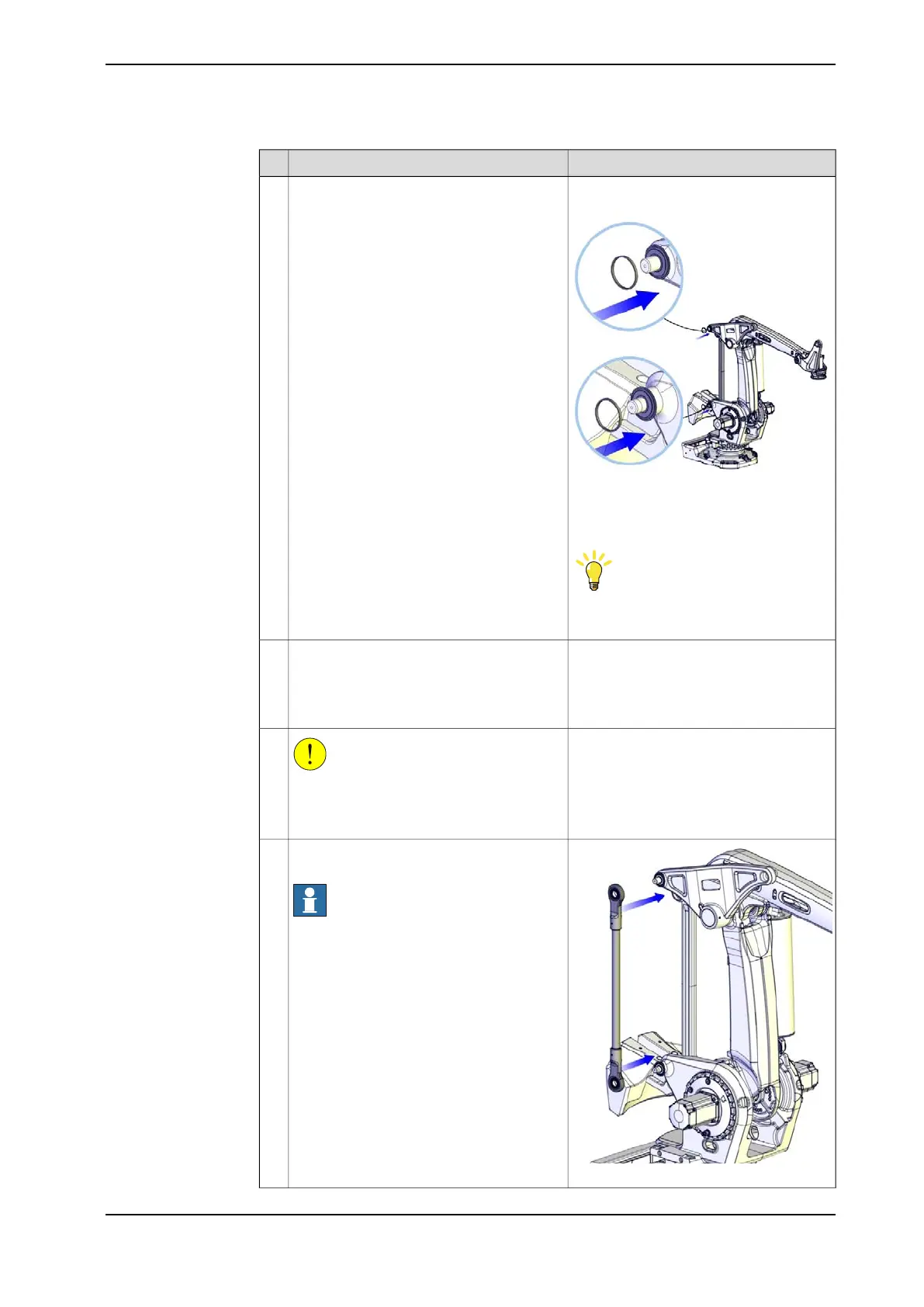

Refit the support washers on the seal-
ing/spacer rings.
5
Tip
Putting some grease on the support
washers will keep them in position.
Check that the bearings in the lower link
arm are fitted correctly, that is in the center
of the hole. (The same distance from bear-
ing to the edge of the lower link arm on both
sides.)
6
CAUTION
The link weighs 23 kg.
All lifting accessories used must be sized
accordingly!
7
xx1000001260
Place the lower link arm on the shaft ends
of the link and frame.
Note
Check that the lower link arm is pushed
completely in.
8
Continues on next page
3HAC039838-001 Revision: C 233
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.5 Replacing the linkage - lower link arm
Continued
