NoteAction
Wipe off residual grease.12
If needed, replace the bearings and radial
seal.
13
Preparations - fitting outer races of the bearing and sealing in the link
Use this procedure to fit the outer races of the bearings in the link.

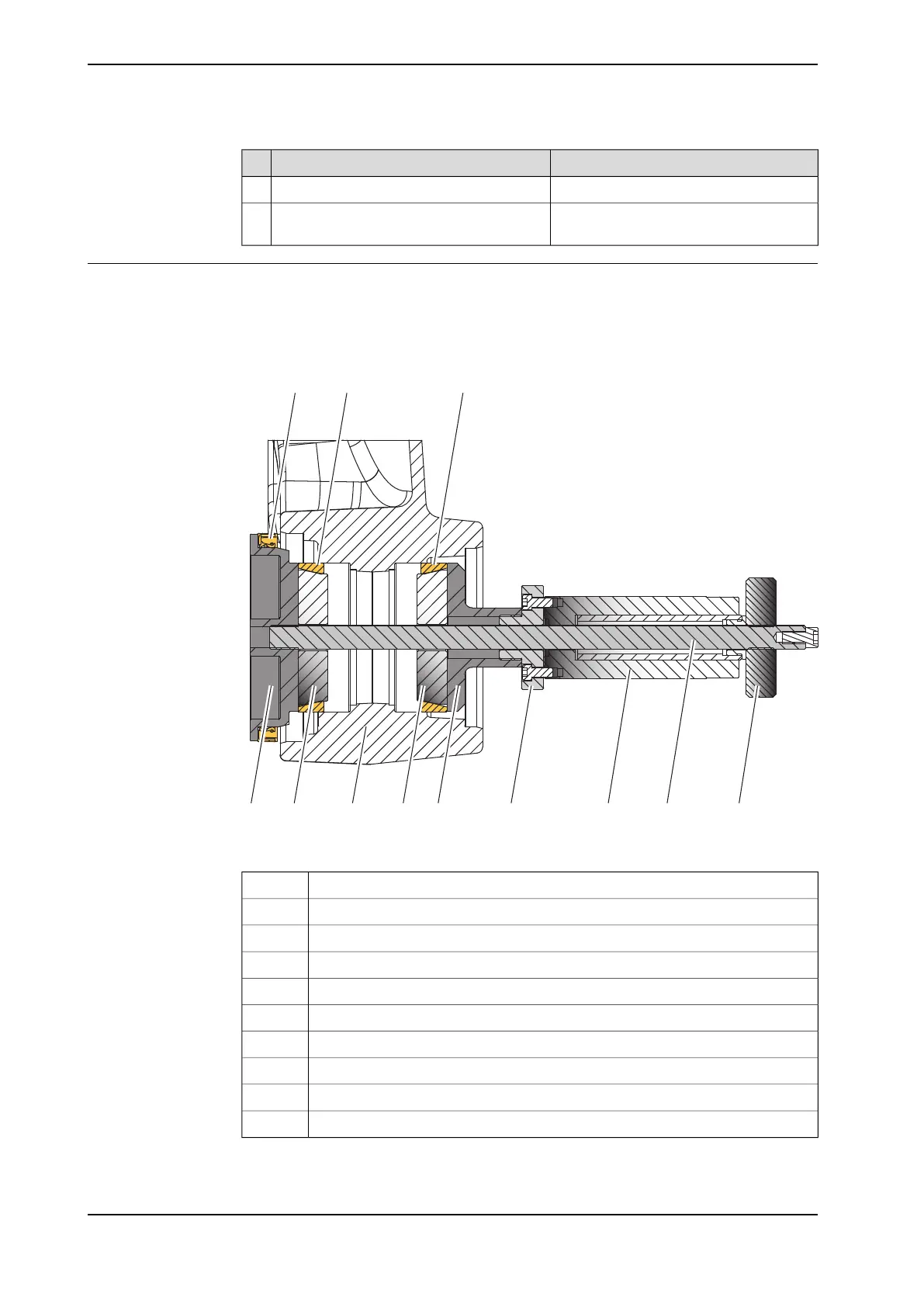

The figure shows parts and press tool placed in the link, ready to start to press the
parts.
xx1100000023
Radial sealing with dust lip D=120 mm/140 mm, T=13 mmA
Bearing, outer race (2 pcs)B
Mandrel, bearing and sealC
Guide (2 pcs)D
LinkE
Pressring, bearingF
DistanceG
Hydraulic cylinderH
Connecting rodJ
Stop nut M16 D=80 mm, T=20 mmK
Continues on next page
240 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.6 Replacement of linkage - link
Continued
