NoteAction
xx1000001267

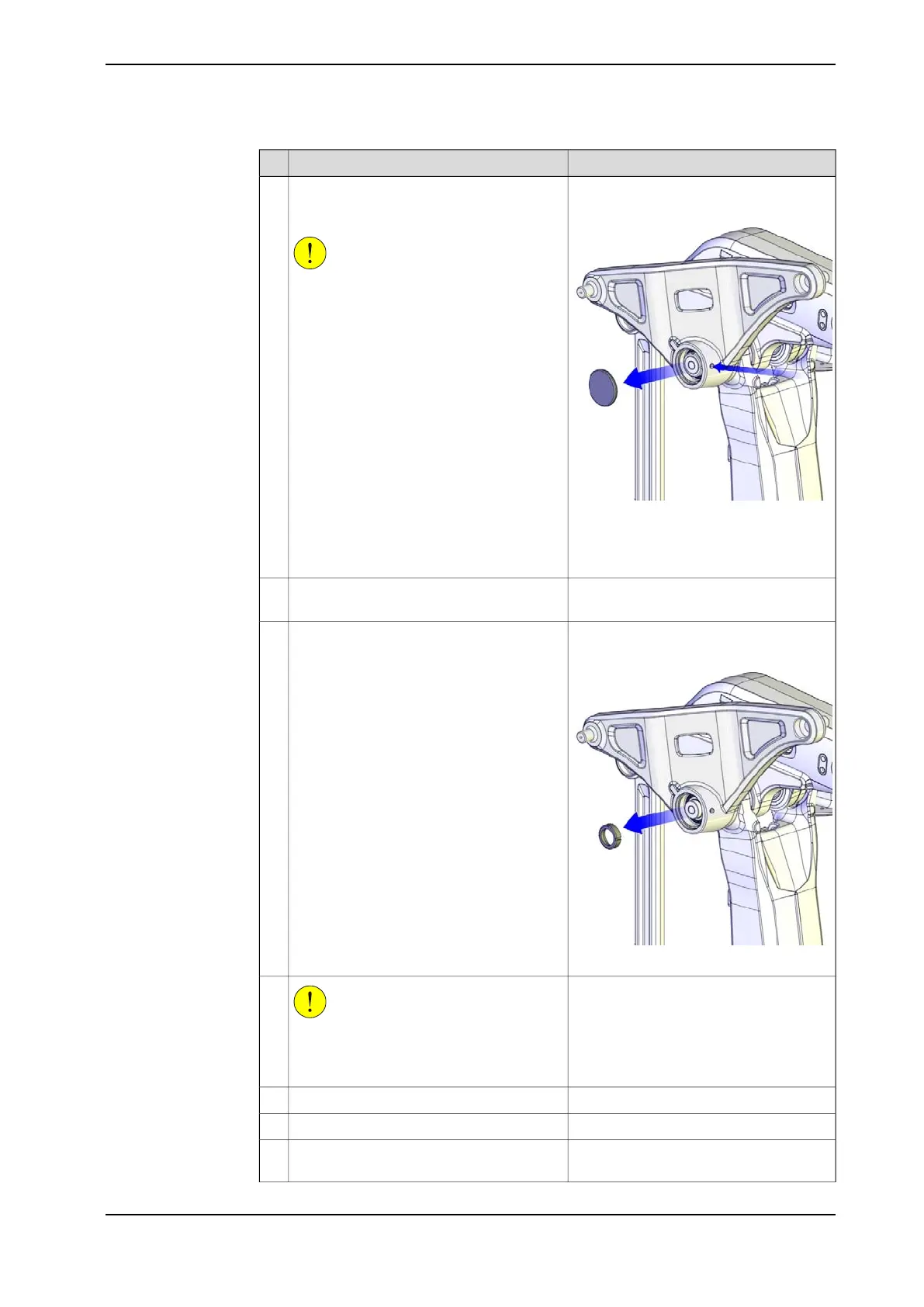

Use compressed air to remove the VK cov-
er. Blow with a very low air pressure into
the hole for filling grease.
CAUTION
Only a very low air pressure is needed!
5
Put one hand with some paper on top of
the VK cover in order to catch it when re-
leased.
Shown in Cut away view of the assembly
of the link on page 236.
Remove the small VK cover.6
xx1000001268
Remove the lock nut (KM8).7
CAUTION
The link weighs 46 kg.
All lifting accessories used must be sized
accordingly!
8
Use a bearing puller to remove the link.9
Remove the link.10
Remove the support ring with the radial
seal.
11
Continues on next page
3HAC039838-001 Revision: C 239
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.6 Replacement of linkage - link
Continued
