NoteAction
xx1000001265

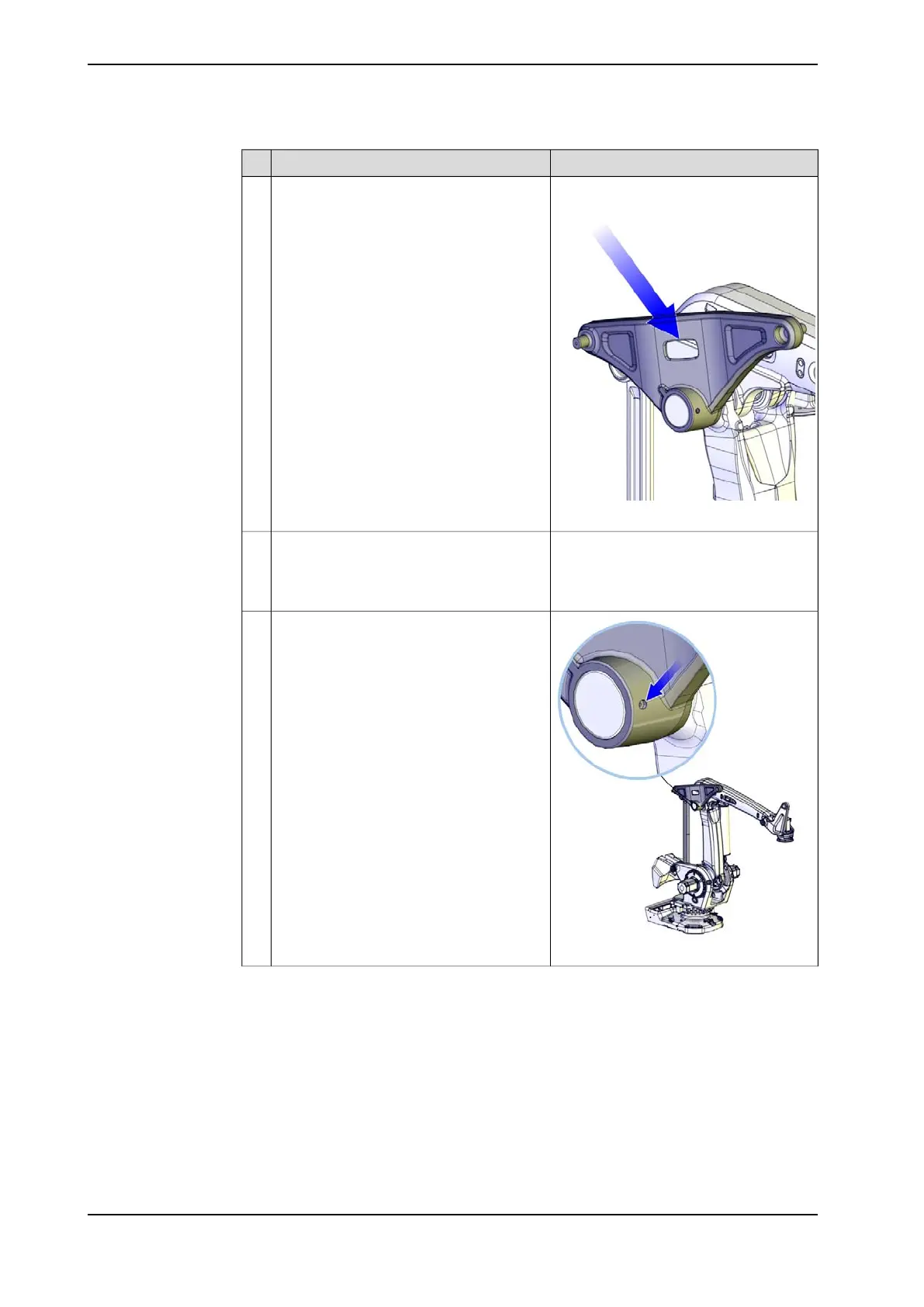

Secure the link with a roundsling in a crane.
Use the hole in the middle of the link.
This is done to prevent the link from moving
when the upper link arm and lower link arm
are removed.
2
Detailed in section Replacing linkage -
upper link arm on page 221
Remove the upper link arm and lower link
arm.
3
Detailed in section Replacing the linkage
- lower link arm on page 228
xx1000001266
Remove screw and washer in the hole for
filling grease.
4
Continues on next page
238 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.6 Replacement of linkage - link
Continued
