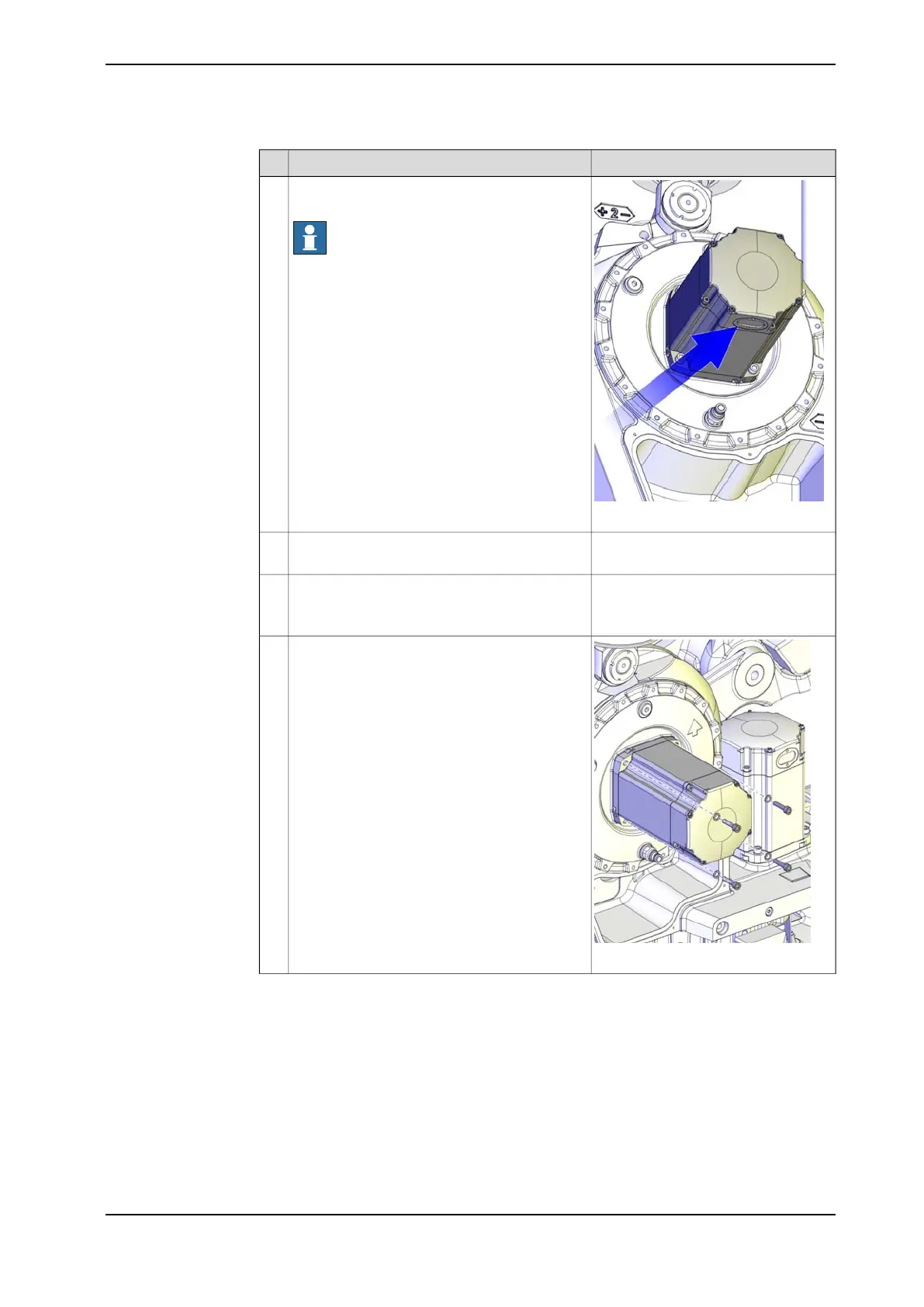

Remove the cable gland cover at the cable exit
.
Note
Make sure the gasket is not damaged! Replace
if damaged.
7
Disconnect all connectors beneath the motor
cover.
8
Connect to connector R2.MP2
• + : pin 2
• - : pin 5
In order to release the brake, connect the 24
VDC power supply.
9
xx1000001104
Unscrew attachment screws and washers of
the motor. Use the bits extension.
10
Continues on next page
3HAC039838-001 Revision: C 287
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.6.2 Replacing motors, axes 2 and 3
Continued
