NoteAction
Art. no. is specified in Required
equipment on page 284.
xx1000001131

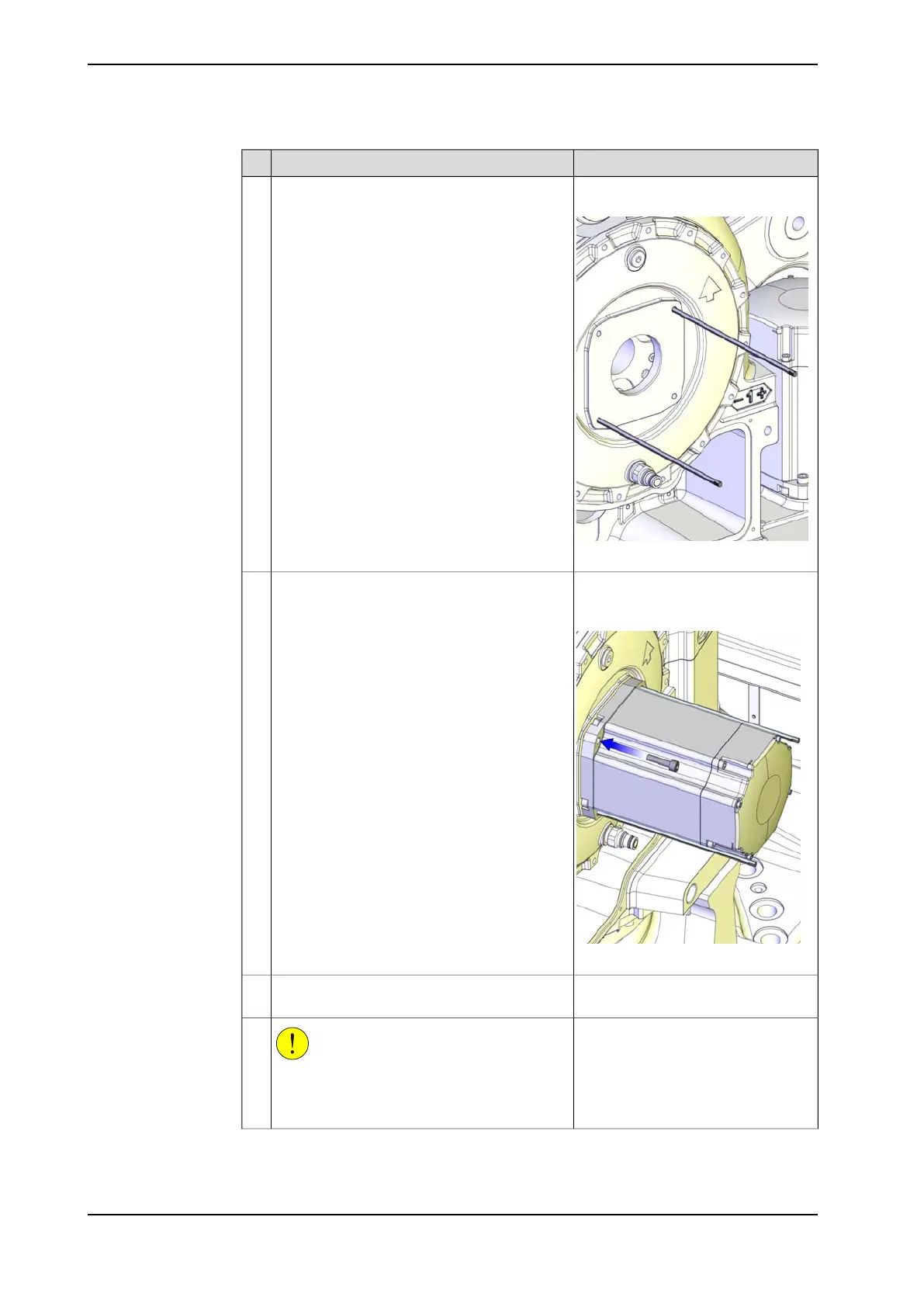

Fit two guide pins in two of the motors attach-
ment holes.
11
M12x70, fully threaded.If required, press the motor out of position by
fitting two screws in the remaining attachment
holes of the motor, diagonal to each other.
12
Always use the removal screws and
tools in pairs!
xx1000001184
Art. no. is specified in Required
equipment on page 284.
Remove the two screws and fit the lifting tool,
motor axes 2-3 to the motor.
13
CAUTION
The motor weighs 32 kg.
All lifting accessories used must be sized ac-
cordingly!
14
Continues on next page
288 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.6.2 Replacing motors, axes 2 and 3
Continued
