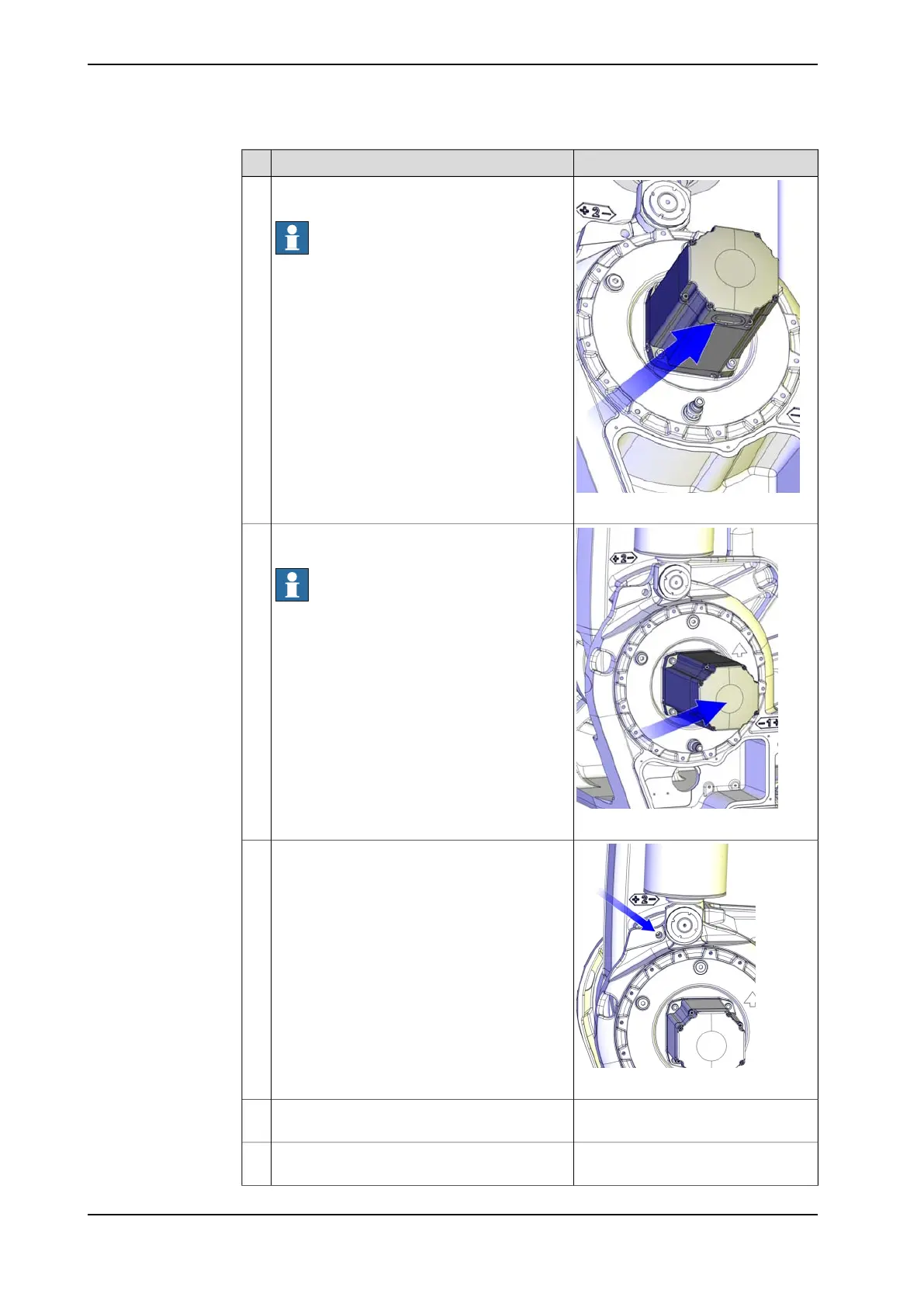

NoteAction
xx1000001103
Refit the cable gland cover at the cable exit with
its two attachment screws.
Note
Use a new gasket!
13
xx1000001102
Refit the motor cover with its attachment screws
and washers.
Note
Make sure the cover is tightly sealed!
14
xx1000001101
Remove the lock screw from the hole for lock
screw.
15
See section Performing a leak-down
test on page 148.
Perform a leak-down test of the axis 2 or 3
gearbox.
16
See section Changing oil, gearbox
axes 2 and 3 on page 132.
Refill the gearbox with oil.17
Continues on next page
292 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.6.2 Replacing motors, axes 2 and 3
Continued
