Refitting, gearbox axis 1
Use this procedure to refit gearbox, axis 1.
NoteAction

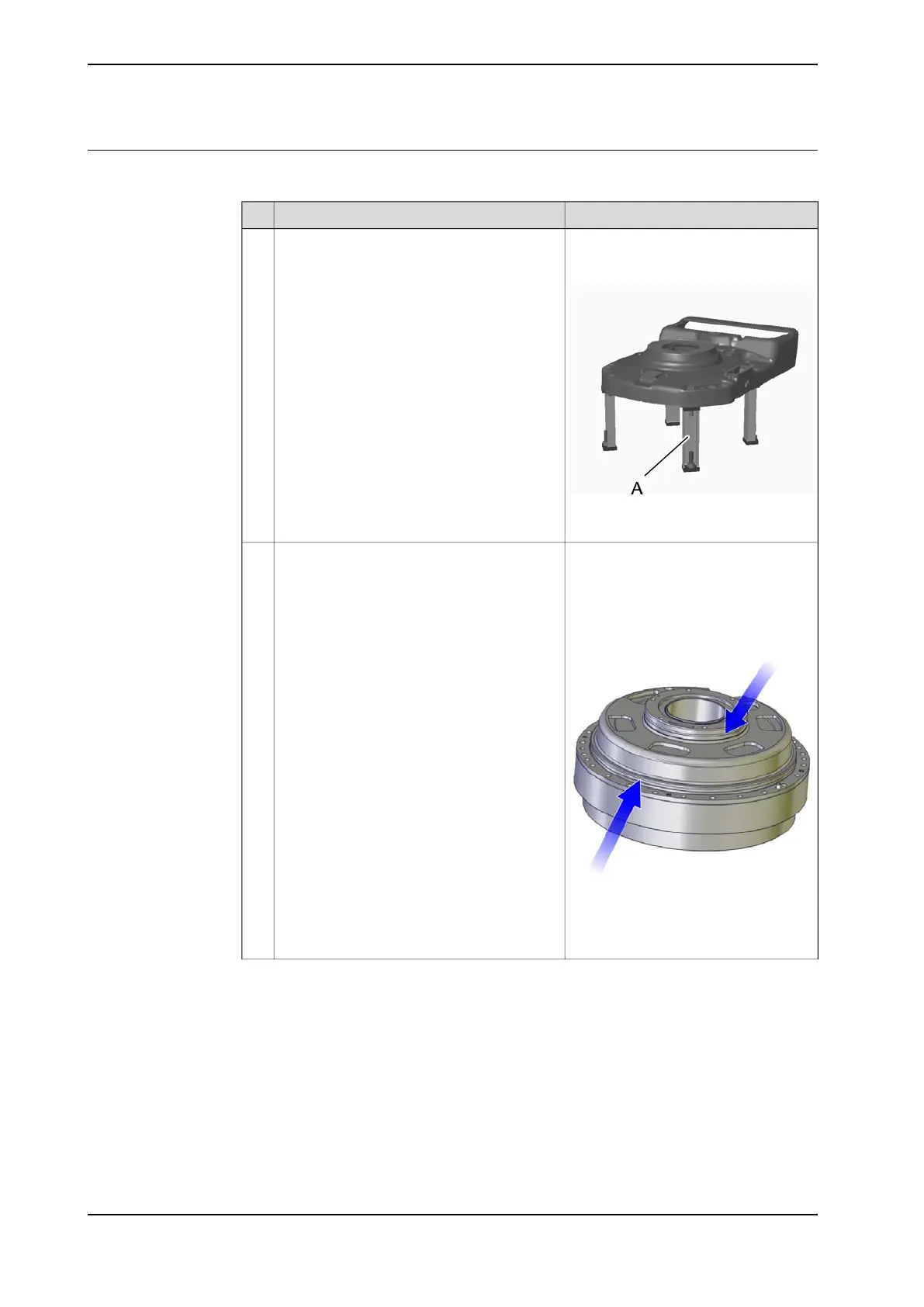

Mounting of the support, base and gear
1 is detailed in section Removal, gear-
box axis 1 on page 302.
xx1000000364
A Support base (4 pcs)
Fit the support, base and gear 1 to the base.1
Art no. is specified in Required equip-
ment on page 301.
xx1000001390
Make sure the two o-rings on the circumfer-
ence of the gearbox are seated properly in
their respective groove. Lubricate them with
grease.
2
Continues on next page
306 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.1 Replacing the axis 1 gearbox
Continued
