NoteAction
xx1000001392

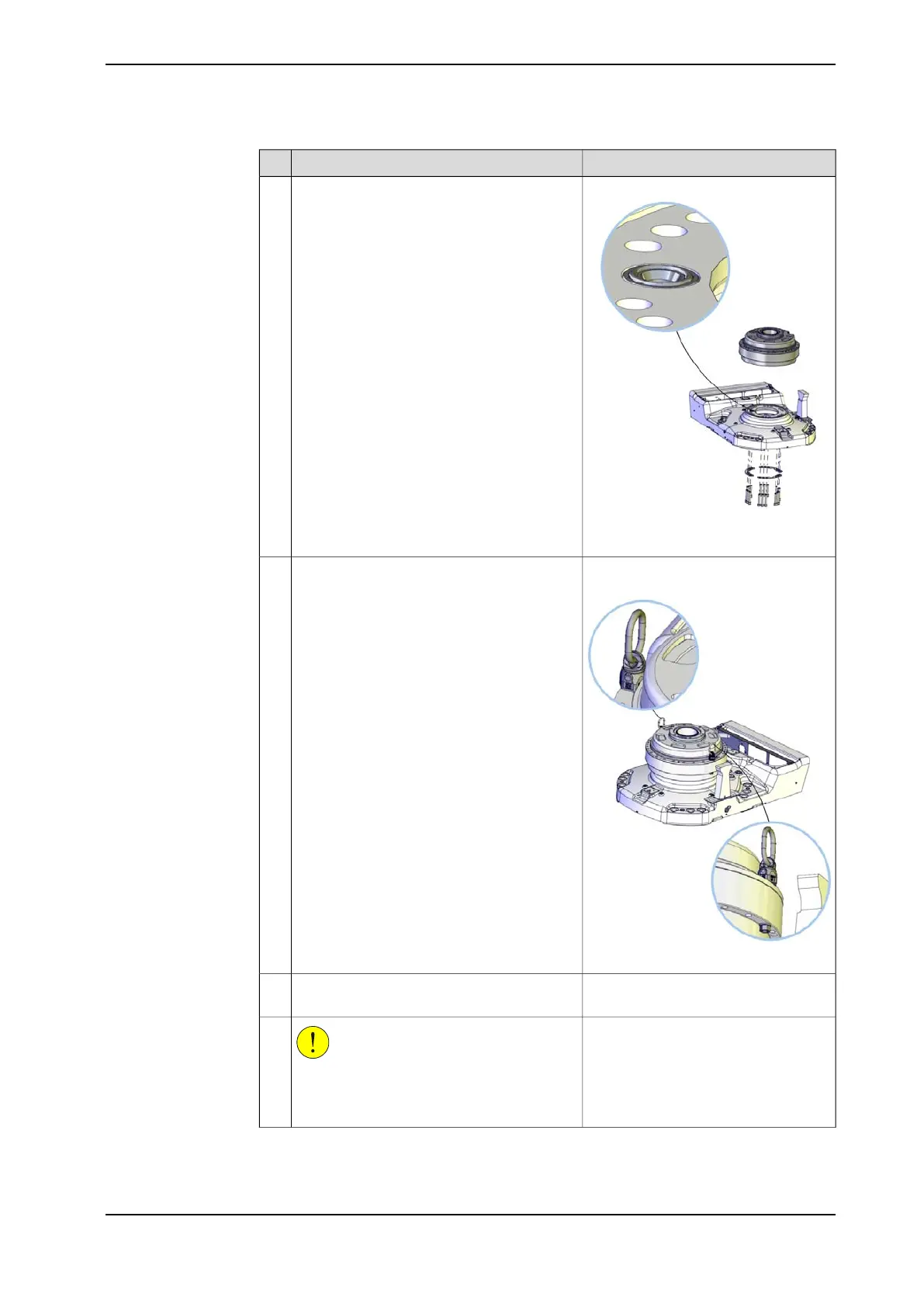

Make sure the small o-ring around the oil hole
is fitted properly!
3
Specified in Required equipment on
page 301.
xx1000001395
Attach the lifting accessory, base and gear 1
and a roundsling, to the gearbox.
4
Specified in Required equipment on
page 301.
Fit two guide pins in two of the attachment
holes in the gearbox, parallel to each other.
5
CAUTION
The gearbox weighs 200 kg.
All lifting accessories used must be sized ac-
cordingly!
6
Continues on next page
3HAC039838-001 Revision: C 307
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.1 Replacing the axis 1 gearbox
Continued
