M5
170 Mains filters

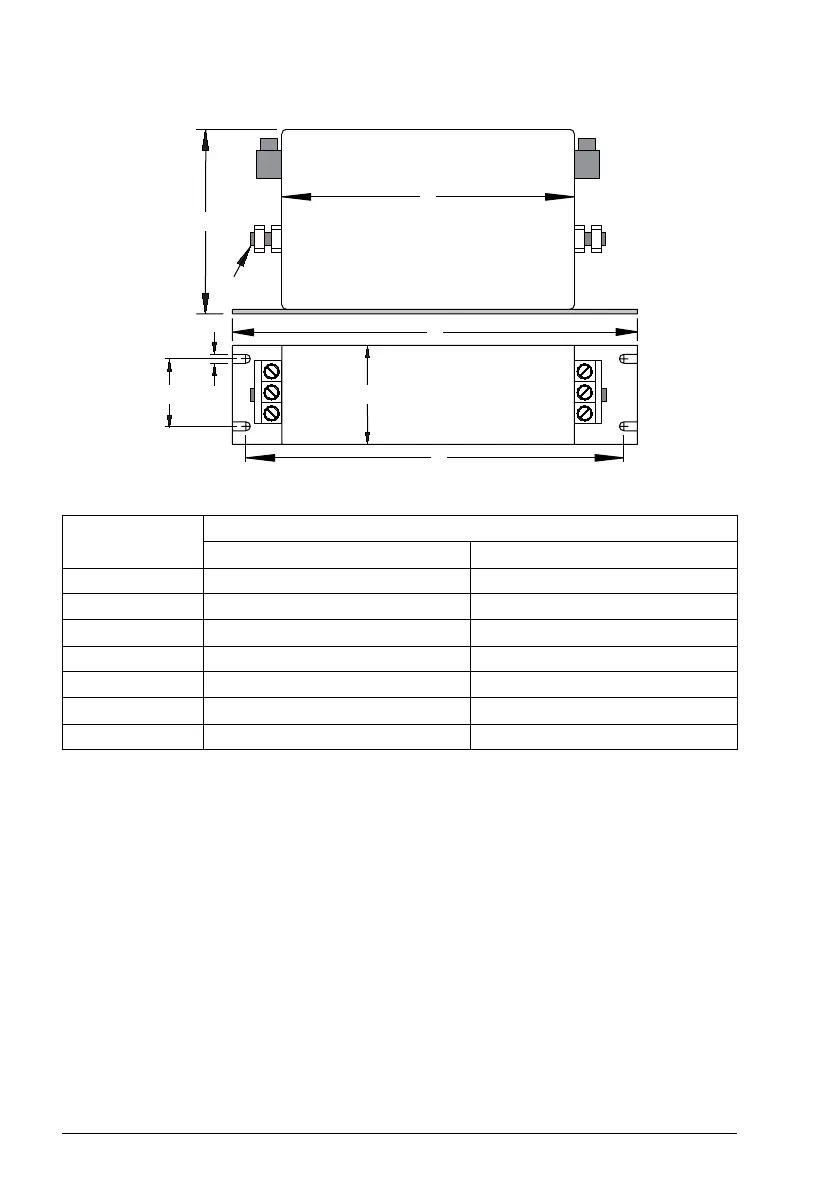

Dimensions, types OFI-03 / JFI-02:
Dimensions: mm (inches)
Dimension OFI-03 JFI-02
A 190 (7.48) 250 (9.84)
B 40 (1.57) 45 (1.77)
C 70 (2.76) 70 (2.76)
D 160 (6.30) 220 (8.66)
E 180 (7.09) 235 (9.25)
F 20 (0.79) 25 (0.98)
G 4.5 (0.18) 5.4 (0.21)
