182 Accessories

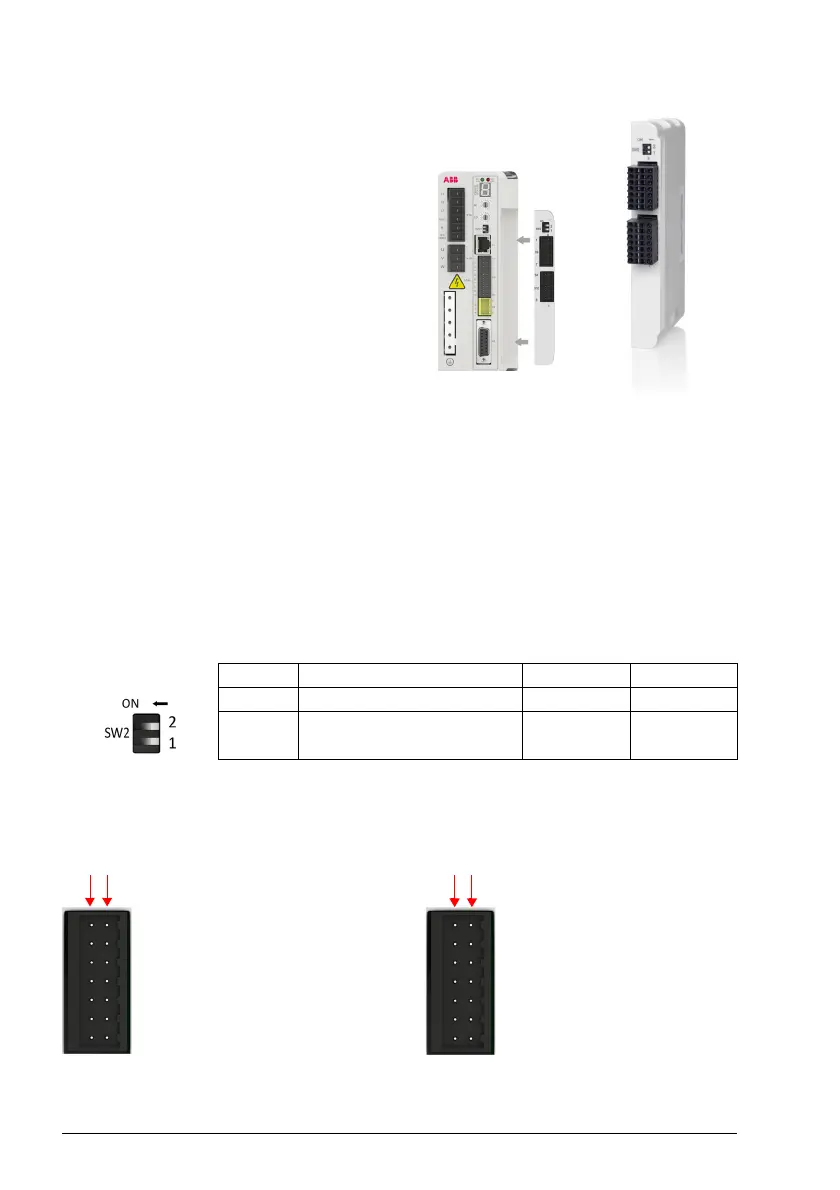

Option card OPT-SIO-1
The option card can provides:
1 general purpose analog input
6 general purpose digital inputs
4 general purpose digital outputs
1 RS485/ RS422 serial port
One analog input with a 12-bit resolution receives a wide range from -10V to +10V.
Six digital input channels are divided into 2 groups. Each group is powered by
separate external power supply and allows the input signal to be connected with
either polarity. All digital outputs share one common external power supply and the
maximum voltage across the outputs when active is 30VDC. Serial port supports
4-wire or 2-wire connections. DIP switch SW2 is used for connecting terminal resistor.
See OPT-SIO-1 option card user’s manual (code:3AXD50000351336) for details.
Note: The firmware build version that supports the option card is MicroFlex e190
Build 5900.4.0 and later.
X9 X10
Pin 1 Pin 8 Pin 14 Pin 7
Switch Purpose OFF ON
2 RS422 RX terminator NO 120Ω
1
RS422 TX terminator
or RS485 terminator
NO 120Ω
1 TX+/ A 8 TX+/ A 14 Shield 7 DIN4
2 TX-/ B 9 TX-/ B 13 CREF1 6 DIN5
3 Shield 10 Shield 12
DIN8
5DIN6
4 RX+ 11 RX+ 11 DIN9 4 DIN7
5 RX- 12 RX- 10 USRV+ 3 CREF0
6 Shield 13 Shield 9 DOUT5 2 DOUT3
7 AIN1- 14 AIN1+ 8 DOUT6 1 DOUT4
