34 Mechanical installation

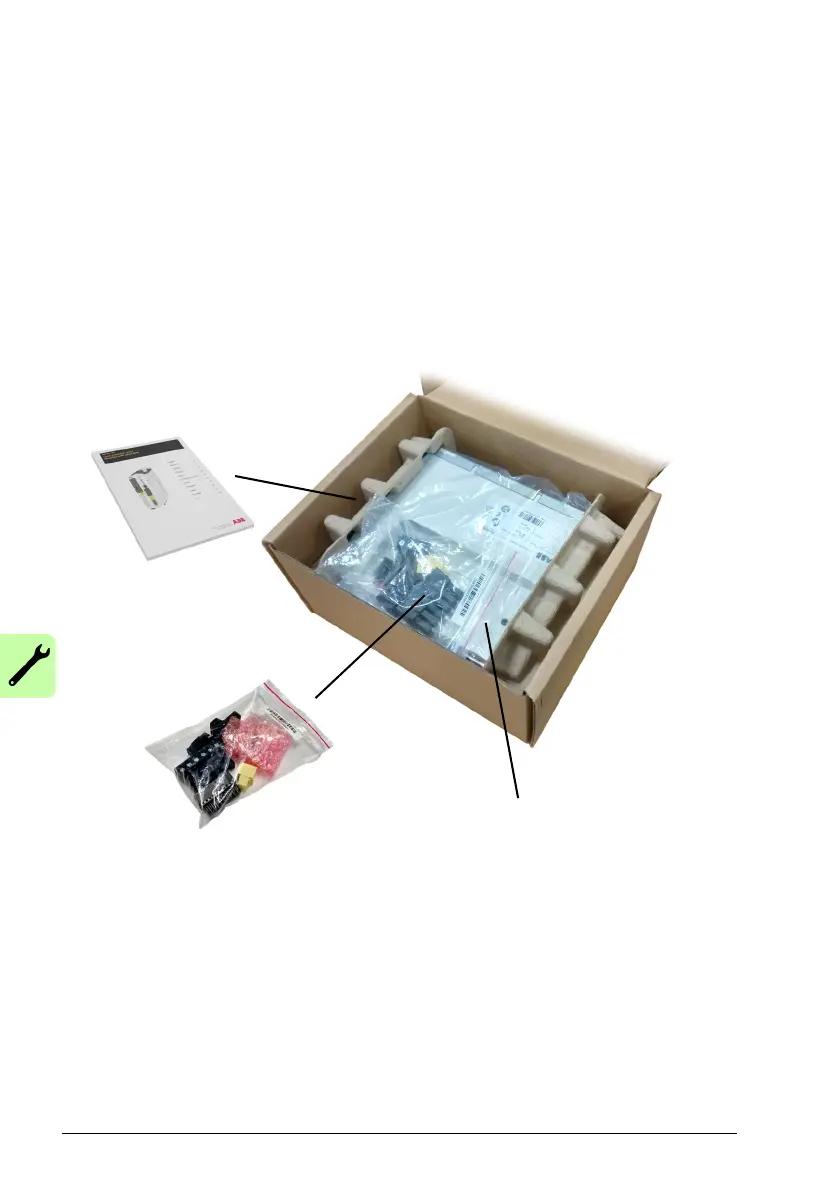

Contents of the package
The box contain
s:
•
MicroFlex
e190 drive
•
Connector pack containing term
inal blocks
for the drive.
•
Memory unit
•
Quick Installati
on Guide.
MicroFlex e190
Quick Installation Guide
Connector pack
33
35
