ABB MicroFlex e190 User Manual

76 Electrical installation: input / output
Motor feedback (X8)
MicroFlex e190 supports incremental encoder, EnDat 2.1, SinCos, BiSS-B (Bi-
directional Synchronous Serial Interface), SSI (Synchronous Serial Interface), EnDat
2.2, Smart Abs absolute encoder or Hiperface feedba
ck, for use with linear and rotary
motors. Resolvers are supported by using the optional resolver adapter (see page
85). There are some important considerati
ons when wiring the feedback device:
• The inputs are not isolated.
• The feedback device wiring must be separated from power wiring.
• Where feedback device wiring runs parallel to power cables, they must be
separa
ted by at least 76 mm (3 in).
• Feedback device wiring must cross power wires at right angles only.
• To prevent contact with other conductors
or earths / grounds, unearthed /
ungrounded ends of shields must often be insulated.
• Linear motors use two separate cables (enco
der and Hall). The cores of these
two cables will need to be wired to the appropriate pins of the 15-pin D-type
mating connector or the encoder breakout option (see page 180) can be used to
simplify linear feedback connections.
• A maximum combined total of 500 mA can be supplied by X8 pin 12 and X7 pin 9
to
feedback devices. Self-resetting fuses protect the 5.5 / 8-12 V supply on X8
and the 5.5 V supply on X7.

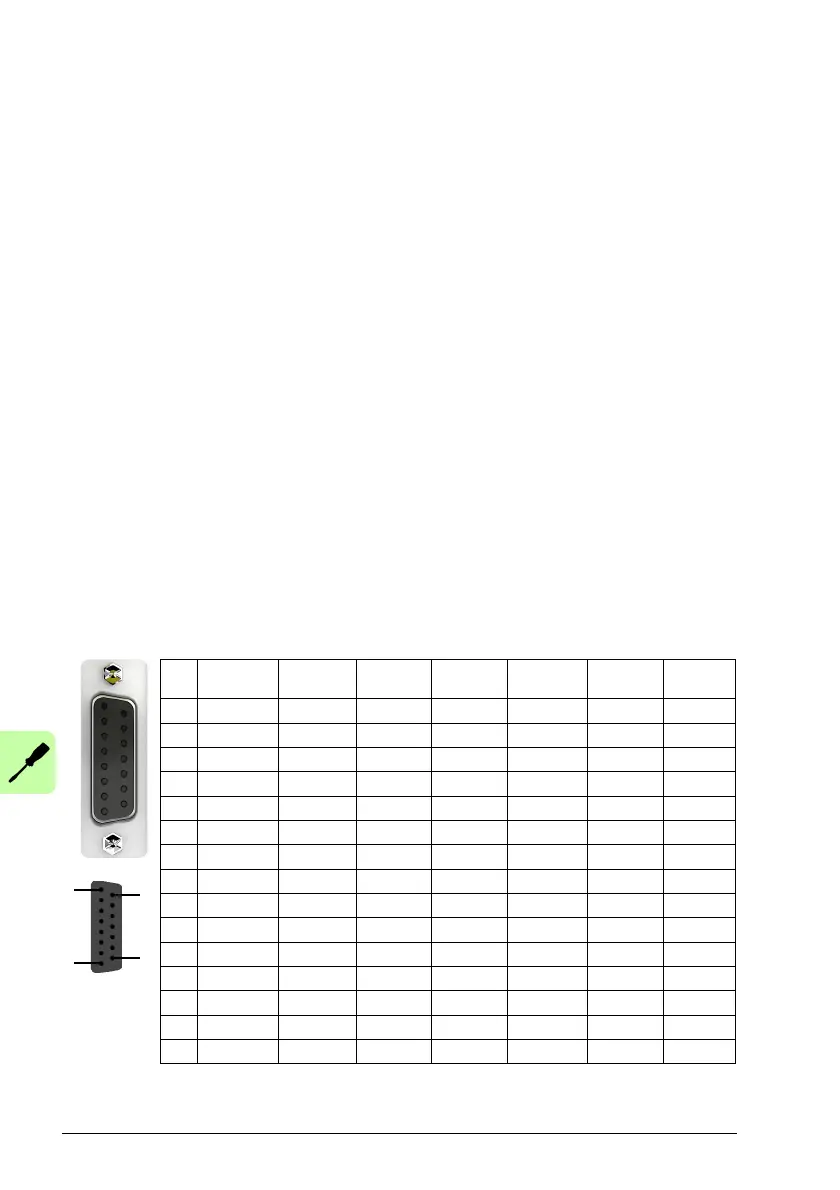

Connection summary
1
9
8
15
* The switch selects the voltage output on pin 12 (see page 78).
Pin
Inc.encoder
with Halls
EnDat
2.1
SinCos BiSS-B,
SSI
EnDat 2.2 Smart Abs Hiperface
1 CHA+ Data+ (NC) Data+ Data+ Data+ Data+
2 CHB+ Clock+ (NC) Clock+ Clock+ (NC) (NC)
3 CHZ+ (NC) (NC) (NC) (NC) (NC) (NC)
4 (NC) (NC) (NC) (NC) (NC) (NC) (NC)
5 Hall U- Sin- Sin- (NC) (NC) (NC) Sin-
6 Hall U+ Sin+ Sin+ (NC) (NC) (NC) Sin+
7 Hall V- Cos- Cos- (NC) (NC) (NC) Cos-
8 Hall V+ Cos+ Cos+ (NC) (NC) (NC) Cos+
9 CHA- Data- (NC) Data- Data- Data- Data-
10 CHB- Clock- (NC) Clock- Clock- (NC) (NC)
11 CHZ- (NC) (NC) (NC) (NC) (NC) (NC)
12 +5.5 V out +5.5 V out +5.5 V out +5.5 V out +5.5 V out +5.5 V out +8 V out*
13 DGND DGND DGND DGND DGND DGND DGND
14 Hall W- (NC) (NC) (NC) (NC) (NC) (NC)
15 Hall W+ (NC) (NC) (NC) (NC) (NC) (NC)
