ABB MicroFlex e190 User Manual

Mechanical installation 35

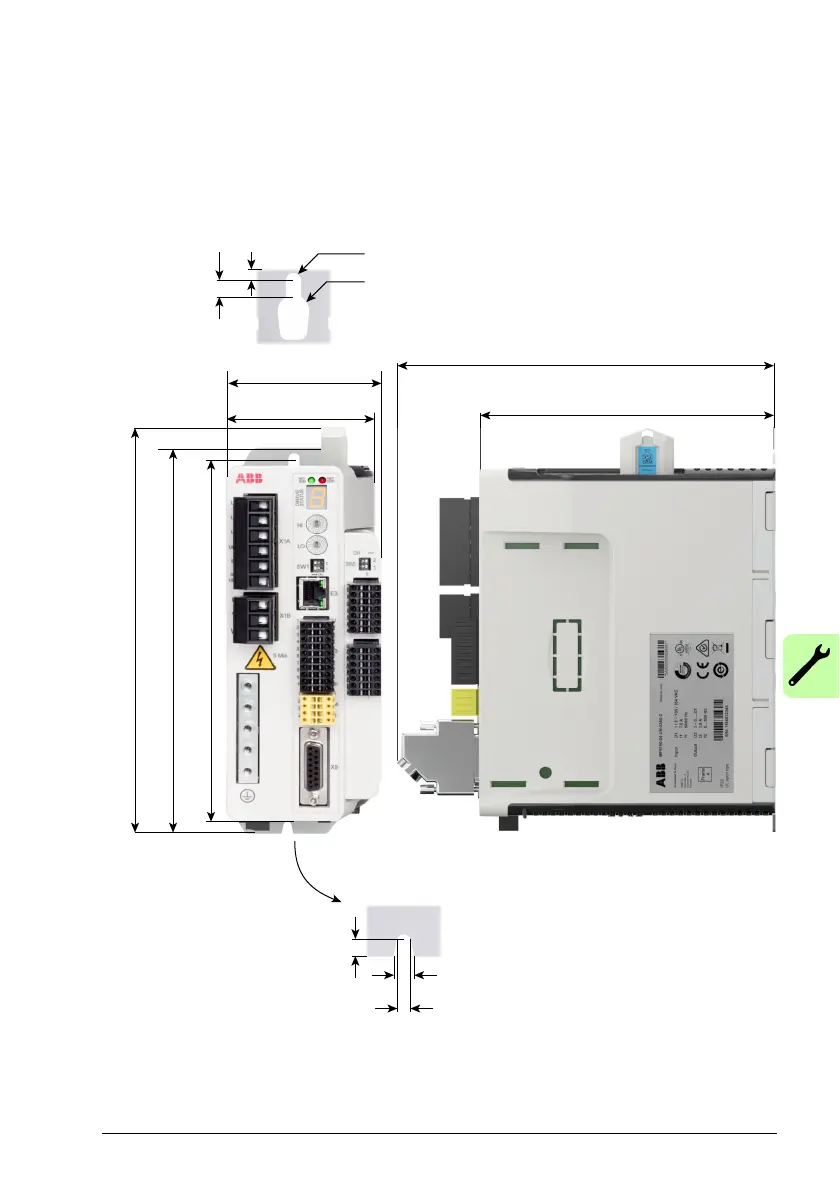

Main dimensions
MicroFlex e190 drives can be installed side by side. The main dimensions of the drive
and free space requirements are shown below.
72
(2.83)
155
(6.10)
200*
(7.87)
7
(0.28)
5
(0.2)
6
(0.24)
188.4
(7.42)
200
(7.87)
223*
(8.78)
Ø 5
(0.20)
5
(0.20)
5
(0.20)
Ø 12
(0.47)
73.45
(2.89)
Unit:mm(inches)
* Approximate dimensions. Allow extra space
for feedback and other control cables.
Weights:
1.6 A: 1.65 kg (3.64 lb)
3 A: 1.70 kg (3.75 lb)
6 A: 1.75 kg (3.86 lb)
9 A: 1.75 kg (3.86 lb)
