70 Electrical installation: input / output

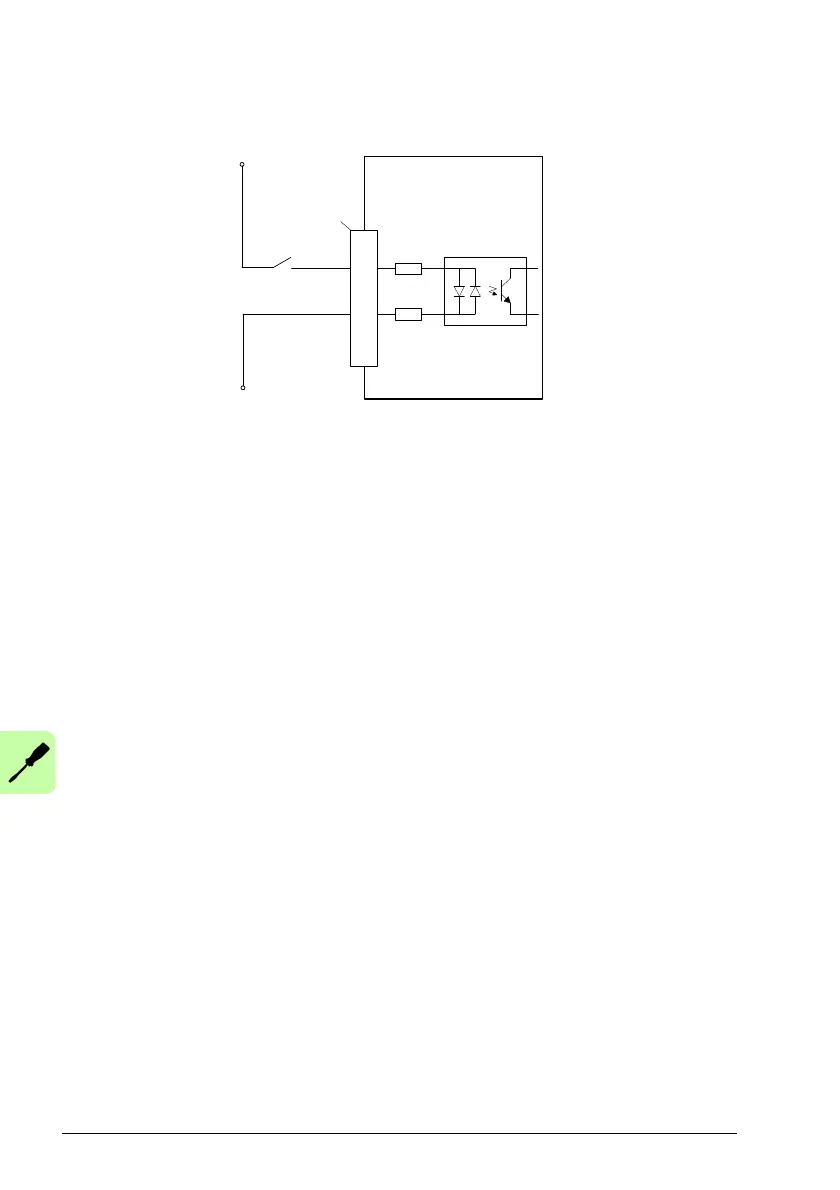

Digital input - typical current sourcing connections to a digital input:
X3
17
7
MicroFlex e190
DI0+
DI0-
User
supply
24 V
User
supply
GND
