4.8 Removing the cartridge group
CAUTION
Clearance between blade tip and casing
Serious damage to machinery or property can result from the rubbing or
jamming of the blade tips on the casing.
 Check that the blades do not rub on the turbine diffuser during
disassembly/assembly by rotating the rotor.

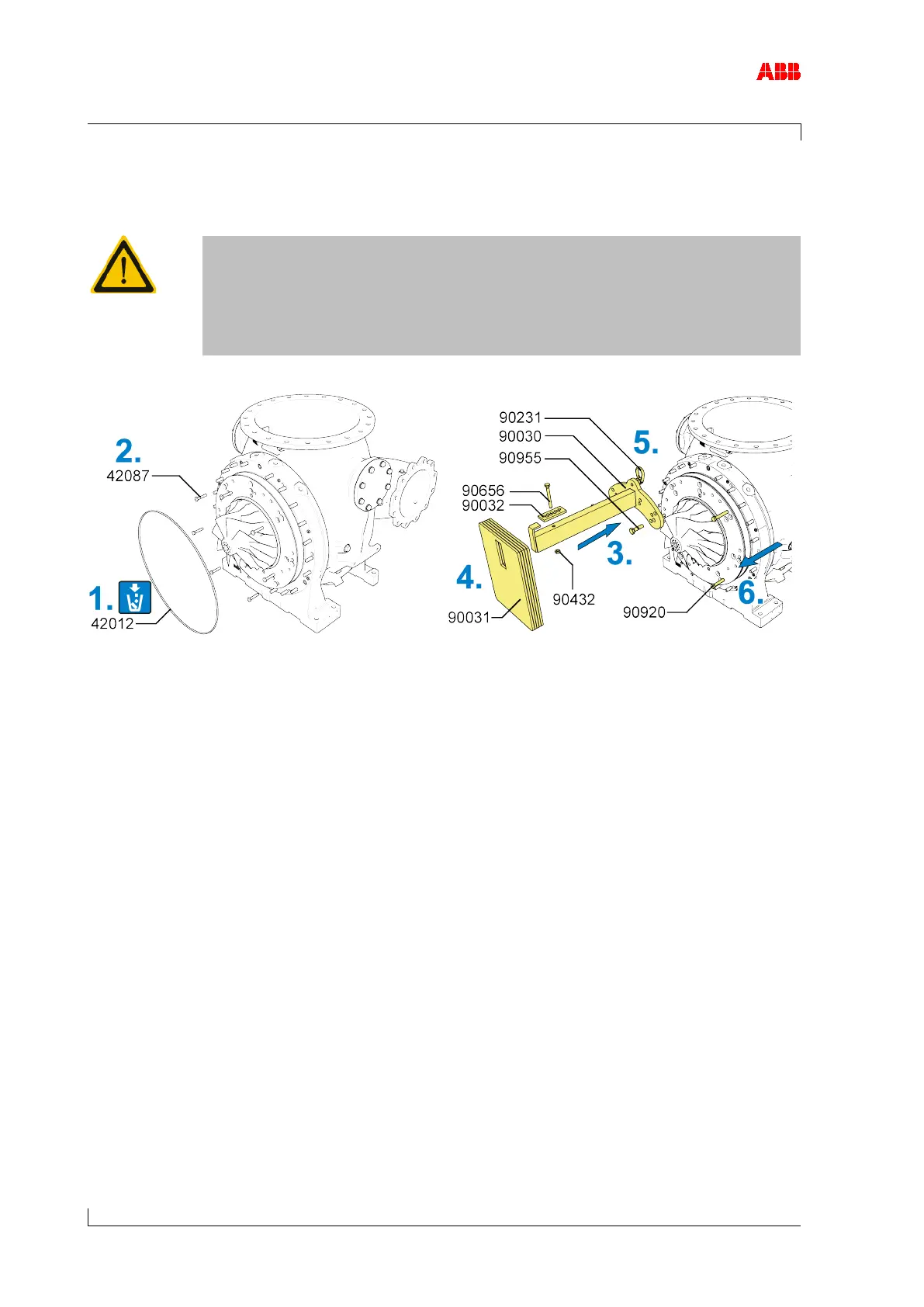

Figure 12: Moving out cartridge group 1
1. Remove the O-ring (42012).
2. Loosen and remove the screws (42087).
3. Fit swivel lifting eye (90231) to bracket (90030) and screw bracket to cartridge group with
two screws (90955).
4. Fit five plates (90031) and secure with plate (90032), screw (90656) and nut (90432).
5. Secure lifting gear to swivel lifting eye (90231) and secure cartridge group to crane.
6. Evenly press off cartridge group by screwing three press-off screws (90920) into the
designated holes.
