2.3 Installing the low-pressure stage

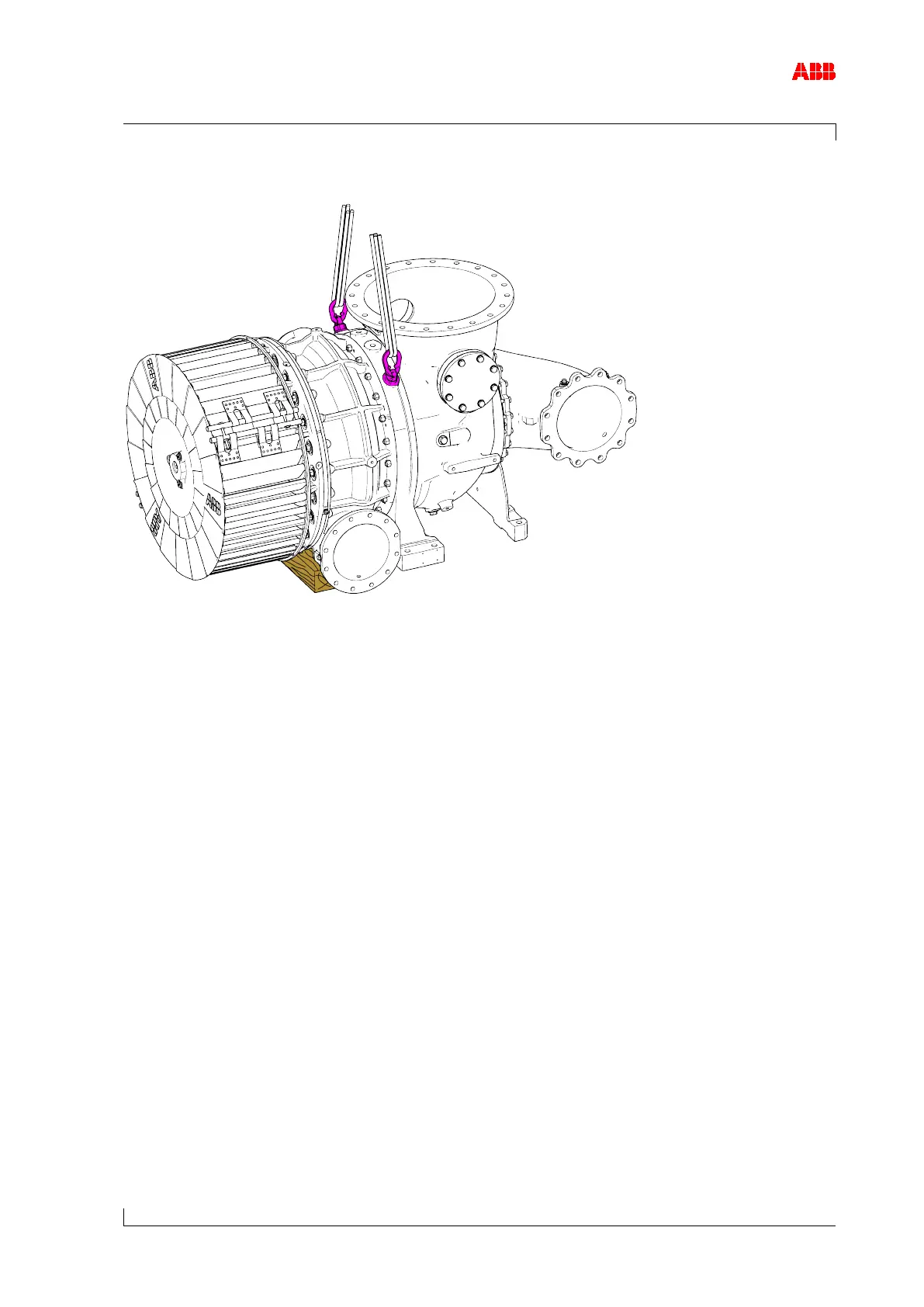

Figure 2: Suspension of complete low-pressure stage
 Attach one lifting gear to each of the two bearing casing suspension points.
 Check that the orifices specified for the low-pressure stage have been installed in both oil
supply lines.
 Check that the gaskets of the oil supply and the oil drain have been correctly installed in
the bracket.
 Align the low-pressure stage on the engine.
 Tighten the fixing elements on the foot according to the instructions of the enginebuilder.
 Attach all gas, air, cleaning and oil pipes according to the instructions of the enginebuilder.
 Connect the cable connector to the speed sensor.
 Fit insulation according to the instructions of the enginebuilder.
