ABB Power2 850-M16 - Installing the Nozzle Ring

Operation Manual / Power2 850-M / 4.2 High-pressure stage
4 Disassembly and assembly / 4.9 Installing the nozzle ring
© Copyright 2017 ABB. All rights reserved. HZTL4063_EN Revision A August 2017
4.9 Installing the nozzle ring

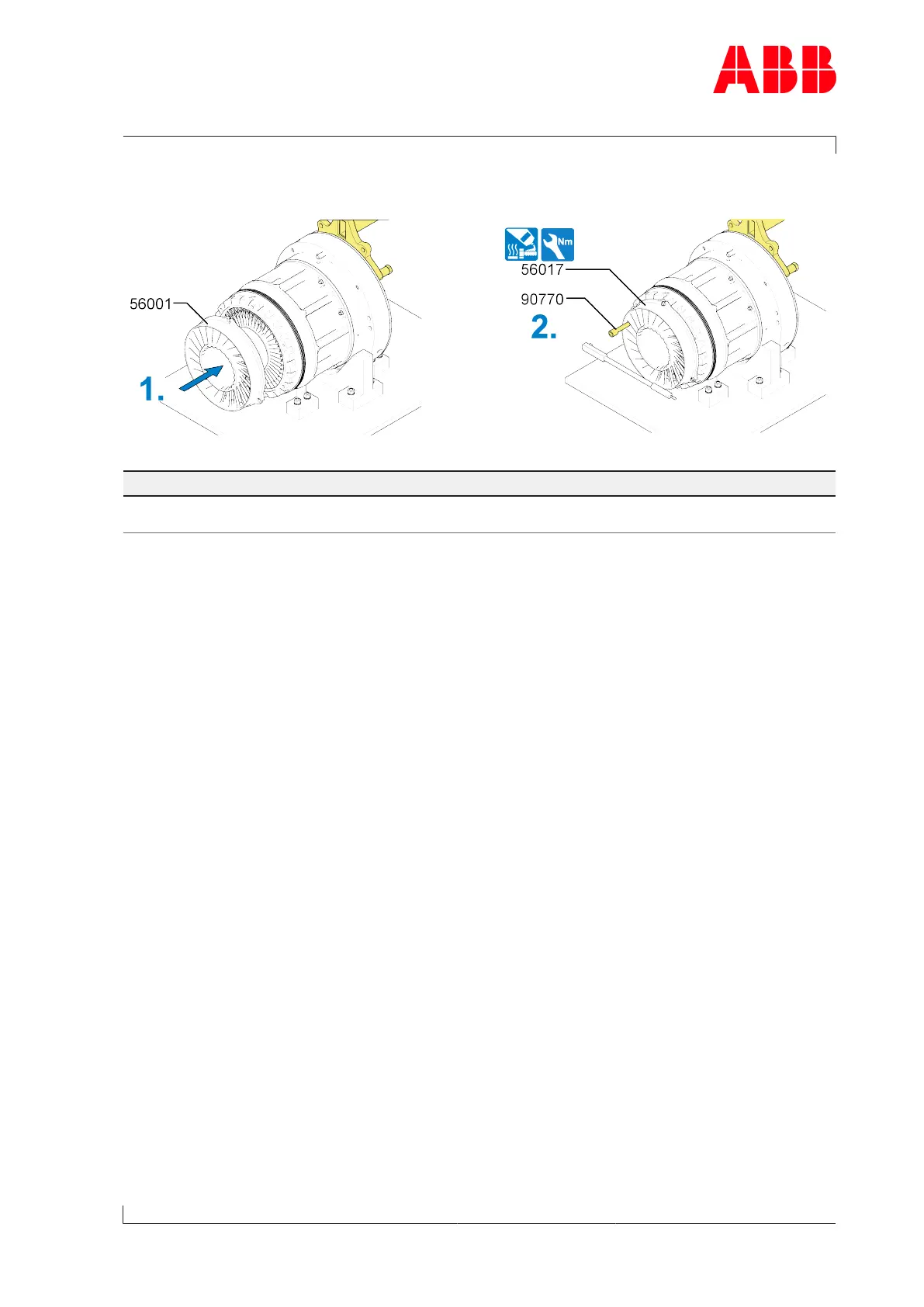

Fig.14: Installing the nozzle ring
Part number Thread and tightening torque
56017 M8 Tx40
25 Nm
Table7: Tightening torque (56017)
1. Fit nozzle ring(56001).
2. Coat threads of screws (56017) with high-temperature grease and tighten the screws
with the box spanner insert (90770).
Page 19 / 35
