4.12 Installing the wall insert

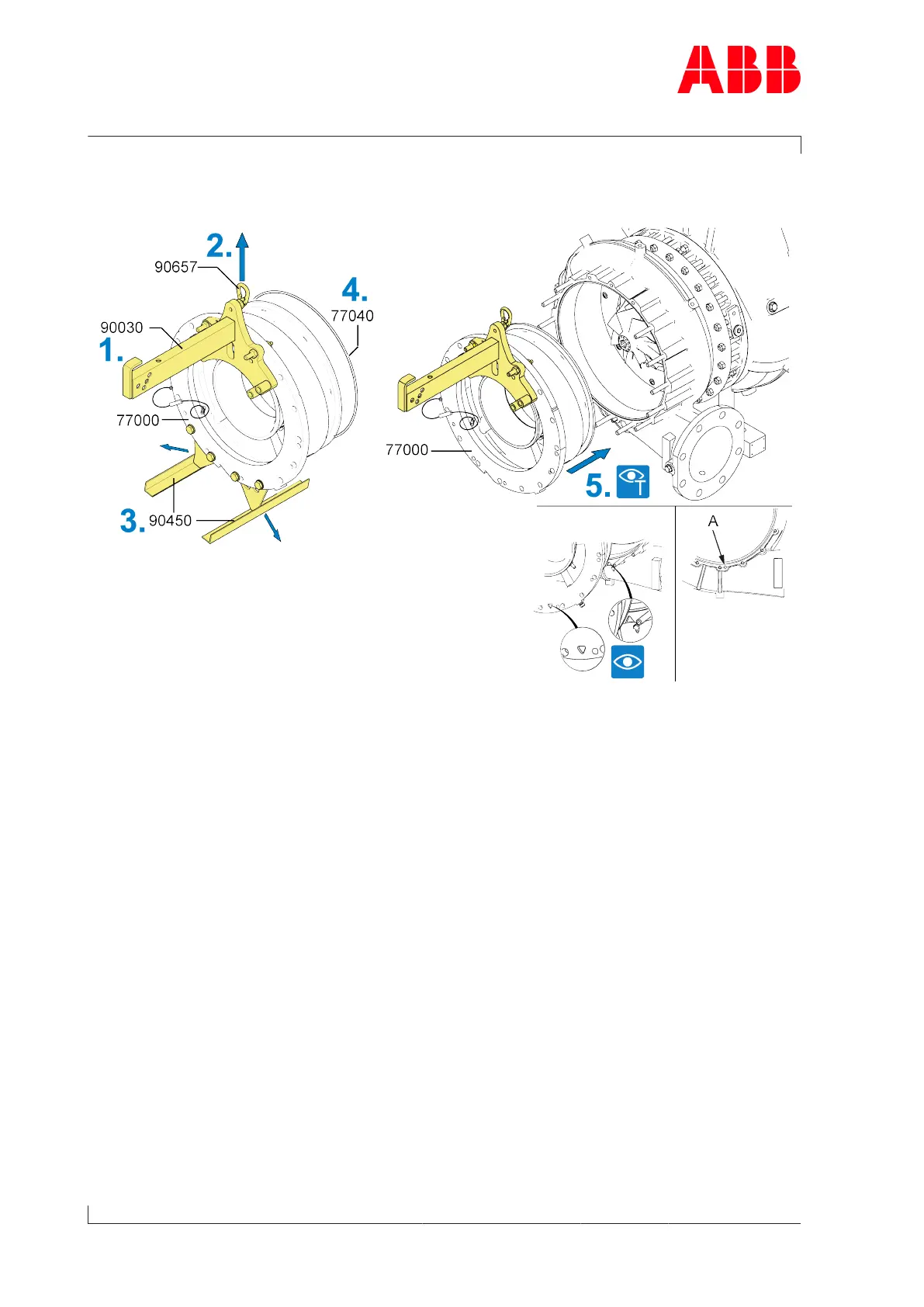

Fig.20: Installing the wall insert 1
1. Fit bracket (90030). (Installation of bracket (see Fig.6: Removing wall insert 2 →12))
2. Secure lifting gear to swivel lifting eye (90657) and lift wall insert (77000).
3. Remove support angle (90450).
4. Fit a new O-ring (77040).
5. Move in wall insert (77000) until bracket can be removed.
