Operation Manual / Power2 850-M / 4.1 Low-pressure stage
6
Spare parts
Page 44 /
49
© Copyright 2015 ABB. All rights reserved.
HZTL4062_EN
Revision -
December 2015

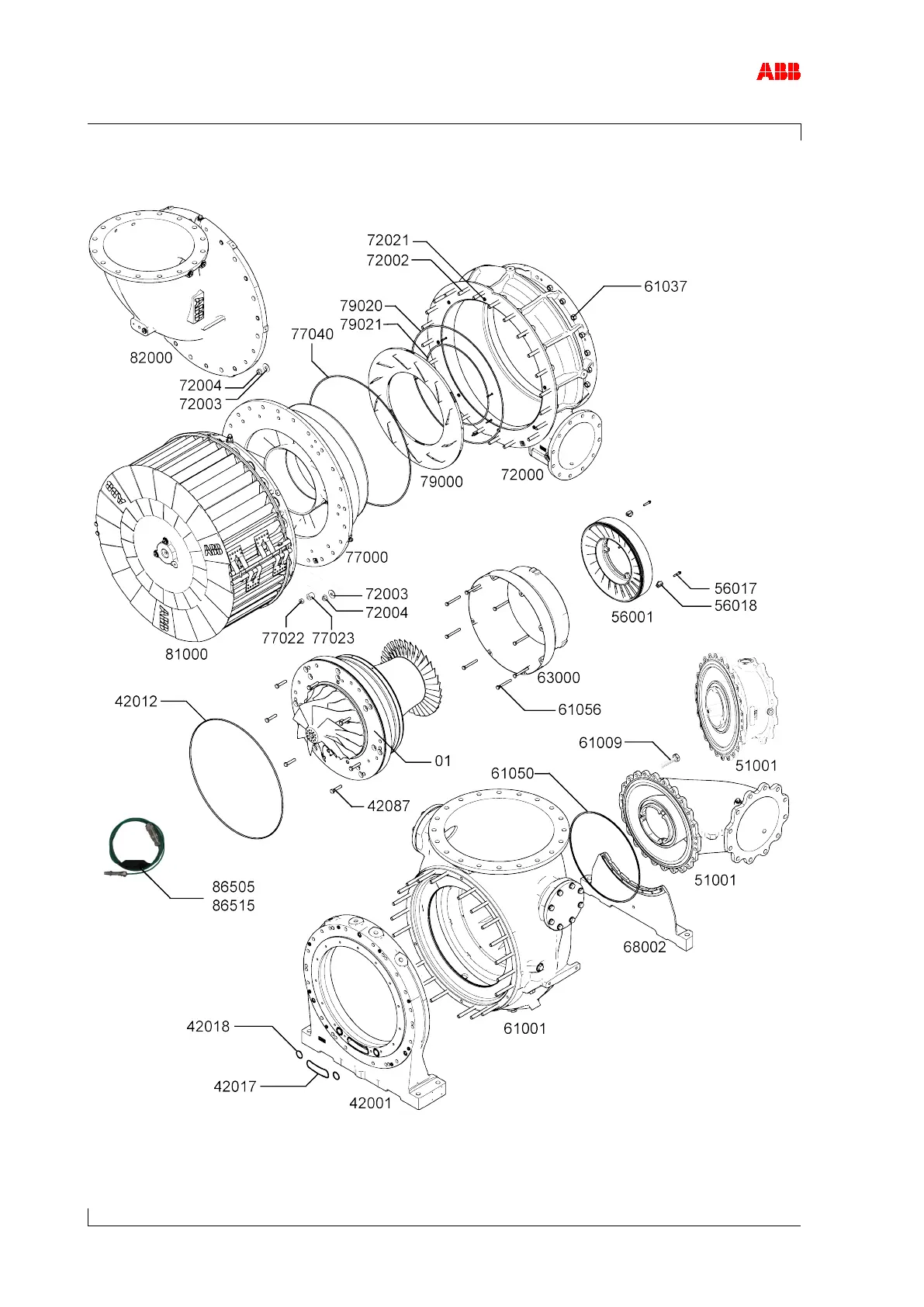

6.2 View of low-pressure stage with part numbers
Figure 35: Low-pressure stage with part numbers
