Operation Manual / Power2 850-M / 4.2 High-pressure stage
2 Removal and installation / 2.1 Transport / weight
© Copyright 2017 ABB. All rights reserved. HZTL4063_EN Revision A August 2017
2 Removal and installation
2.1 Transport / weight

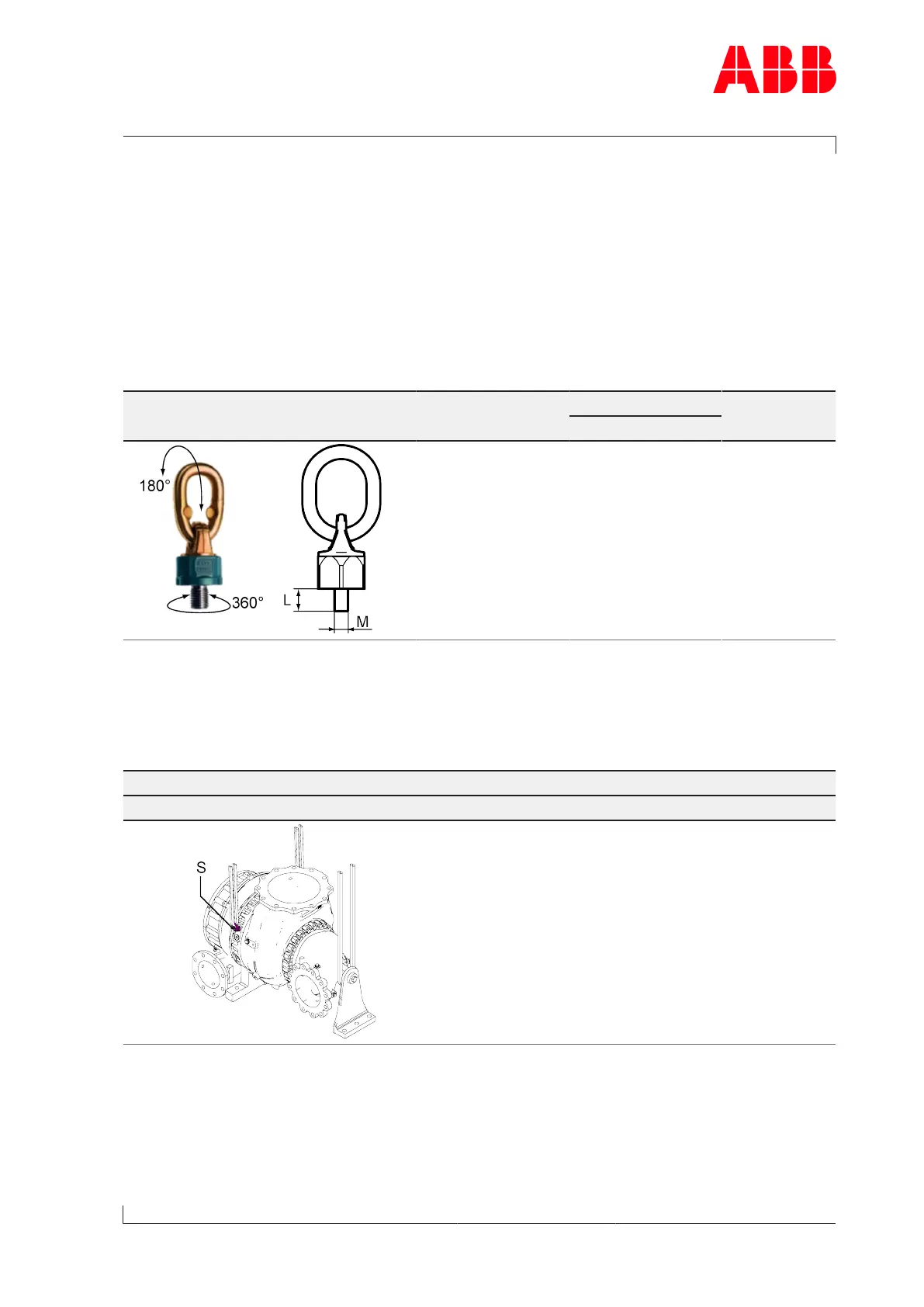

Swivel lifting eyes to be used
Two swivel lifting eyes (S) are required for the safe lifting of loads. These are not included in
the ABB Turbo Systems scope of delivery.
Swivel lifting eye (S) Power2 Thread Length Minimum load
limit
Lmin Lmax
850 HP M12 15 mm 20 mm 700
Table2: Swivel lifting eyes to be used
Lifting gear with a sufficient load limit must be used for removing and installing the high-
pressure stage. The following weight specification is the heaviest variant possible. This
standard value may deviate from the data on the rating plate depending on the specifica-
tion.
Complete high-pressure stage
Suspension Weight [kg]
700
Table3: Transporting the high-pressure stage
Page 3 / 35
