2 Removal and installation
2.1 Transport / weight

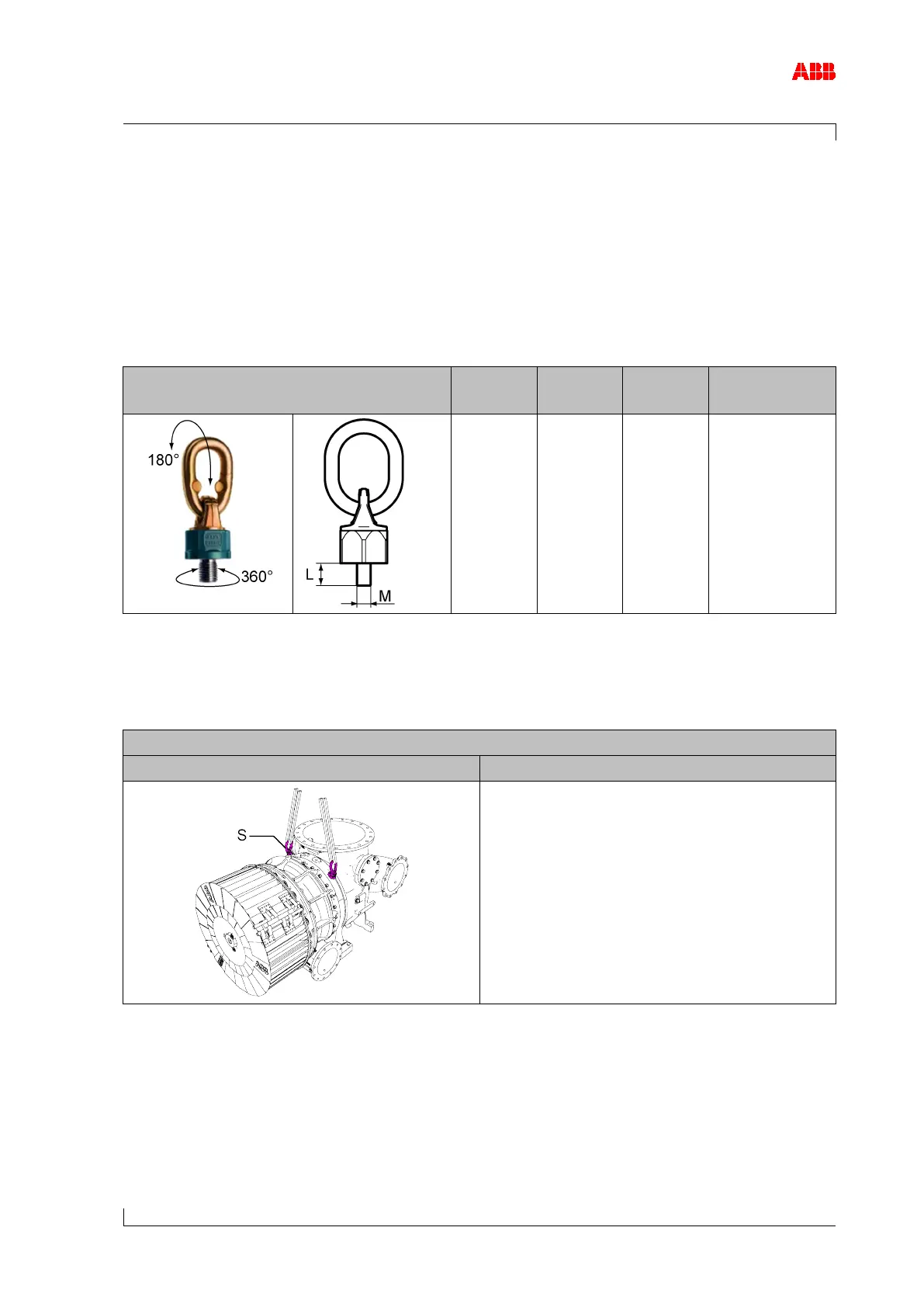

Swivel lifting eyes to be used
Two swivel lifting eyes (S) are required for the safe lifting of loads. These are not included in
the ABB Turbo Systems scope of delivery.
Swivel lifting eye (S)
Power2
Thread
Length
L
Minimum load
limit
850 LP M24 30 mm 1800 kg
Table 2: Swivel lifting eyes to be used
Lifting gear with a sufficient load limit must be used for removing and installing the low-
pressure stage. The following weight specification is the heaviest variant possible. This
standard value may deviate from the data on the rating plate depending on the specification.
Complete low-pressure stage
Suspension
Weight [kg]
1800
Table 3: Transporting the low-pressure stage
