Operation Manual / Power2 850-M / 4.2 High-pressure stage
4 Disassembly and assembly / 4.4 Removing wall insert
© Copyright 2017 ABB. All rights reserved. HZTL4063_EN Revision A August 2017
4.4 Removing wall insert

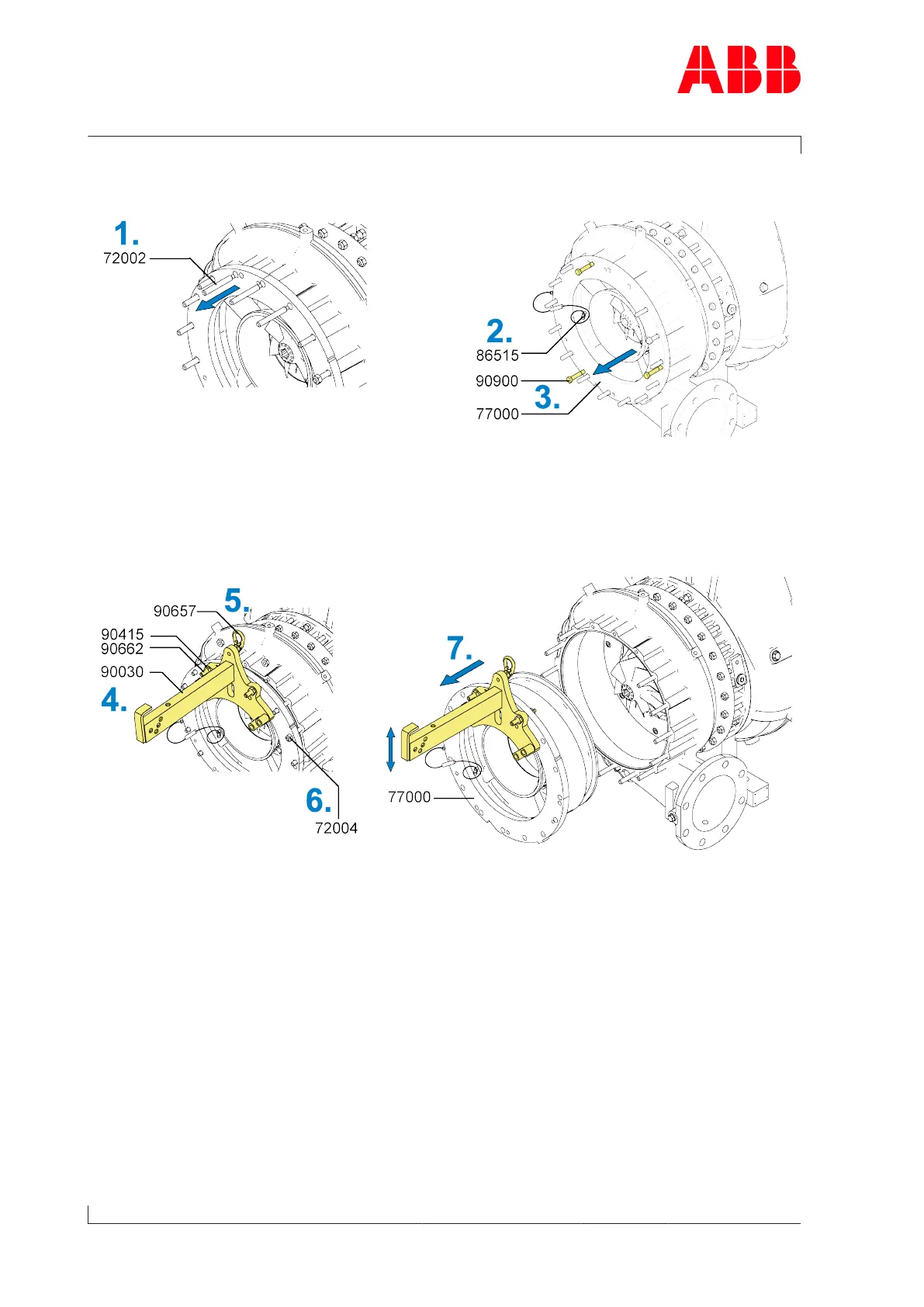

Fig.5: Removing wall insert 1
1. Remove three studs (72002) in the upper area.
2. Unplug cable connector(86515) and fix speed measurement cable in wall insert.
3. Use three press-off screws(90900) to press off the wall insert(77000) until the lifting
device can be fitted.
Fig.6: Removing wall insert 2
4. Fit bracket (90030) with screws (90662) and nuts (90415).
5. Attach lifting gear to swivel lifting eye (90657).
6. Remove lock nut (72004).
7. Carefully move out wall insert (77000). When doing this, manually balance the wall insert
at the bracket.
Page 12 / 35
